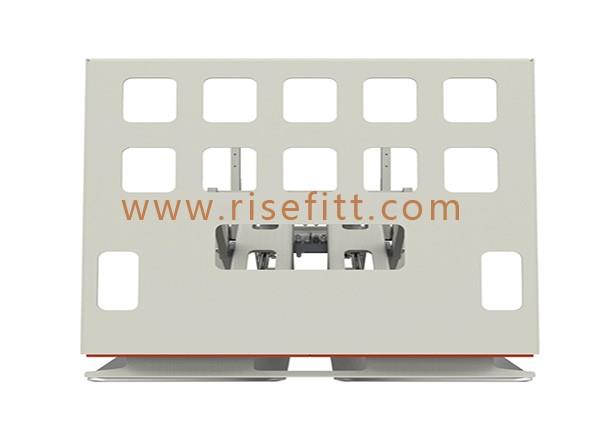

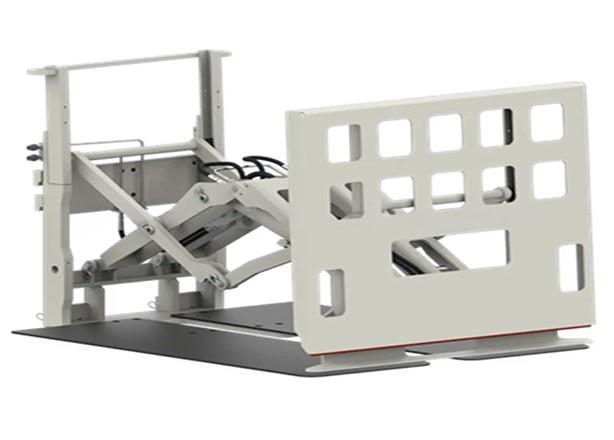

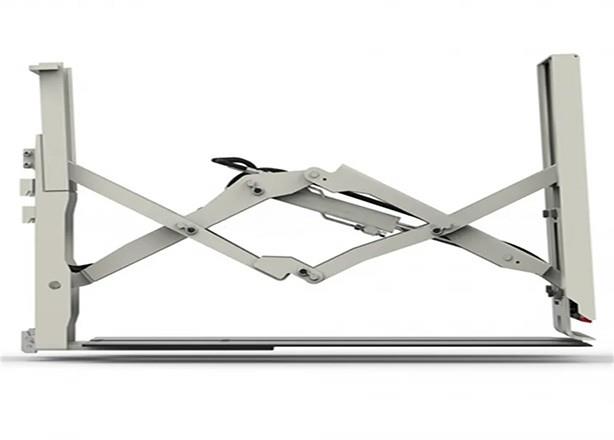

Quick fork mount push pull - Without Sheet save types

Features:

1. The chamfered platen corner can prevent the slip sheet from tearing

2. It can be installed without disassembling the fork, saving time

3.Goods and sheet are handled as a whole, which is easy to move goods next time.

The two platens of a push pull have two different spacing to choose.

5. The structure is strong and the vision is good

Description

Specification

Parameters

Optional parts:
1. Quickly release lower hook
2. Different mounting class: 2A or 3A
3. Different push off distance

The quick fork mount push pull can be quickly and easily disassembled and installed without disassembling the forklift forks. Without sheet save type is very suitable for handle goods with sheet.

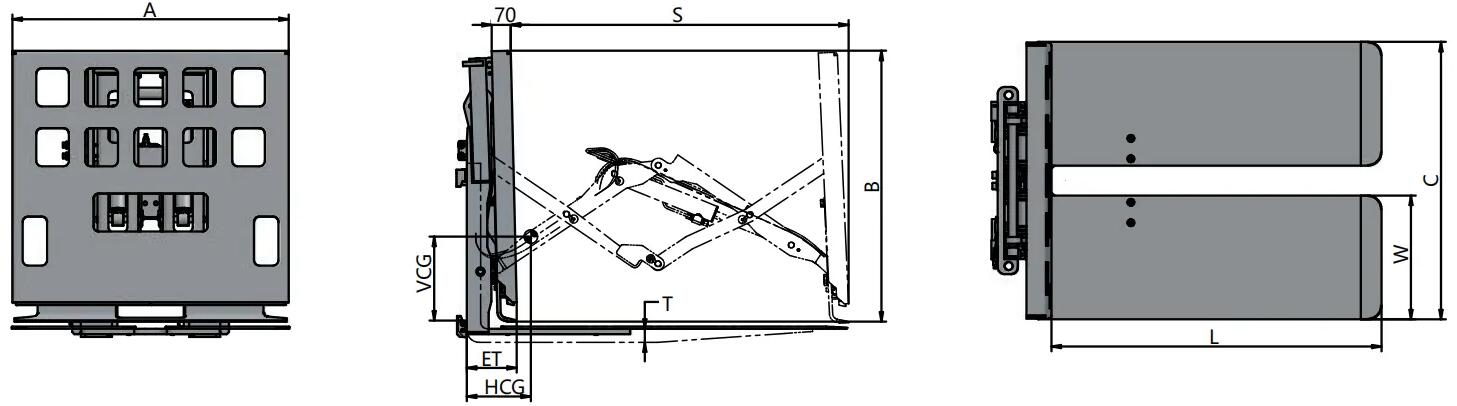

Parameters

Capacity	Load Center	Model No.	Mounting Class	Faceplate Size	Platen Size	Outer Platen Spacing	Push Stroke	Min. Truck Carriage Width	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm			A * B mm	W * L mm	C mm	S mm	mm	HCG mm	kg	ET mm
Without Sheet-save Types
1600	600	QPB16E-001A	ISO 2A	1015*1000	455*1220	1020/1170	1270	820	237	381	185
1600	600	QPB16E-001B	ISO 3A	1015*1000	455*1220	1020/1170	1270	820	237	381	185
1600	600	QPB16E-002A	ISO 2A	1015*1000	380*1220	870/1020	1270	820	222	370	185
1600	600	QPB16E-002B	ISO 3A	1015*1000	380*1220	870/1020	1270	820	222	370	185
2000	600	QPB20E-001A	ISO 2A	1015*1000	455*1220	1020/1170	1270	820	241	386	185
2000	600	QPB20E-001B	ISO 3A	1015*1000	455*1220	1020/1170	1270	820	241	386	185
2000	600	QPB20E-002A	ISO 2A	1015*1000	380*1220	870/1020	1270	820	226	375	185
2000	600	QPB20E-002B	ISO 3A	1015*1000	380*1220	870/1020	1270	820	226	375	185

*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
