RF-TS Series Tipping Container/Bins
RF-TS Tipping Containers are the industrys best tool for waste sorting and material handling.
Description
Specification
Parameters
RF-TS Tipping Containers are the industrys best tool for waste sorting and material handling. Designed, reinforced and powder coated to provide maximum safety and service lift.

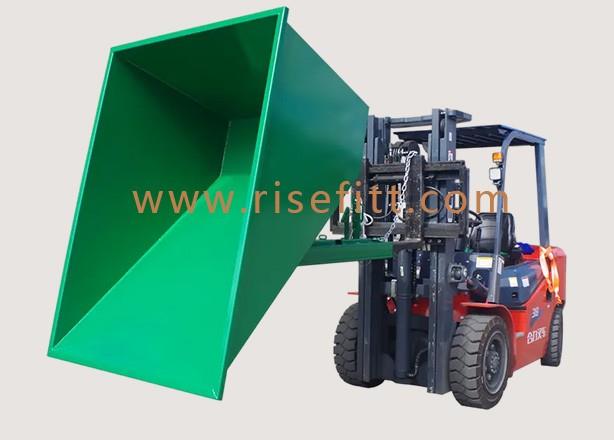

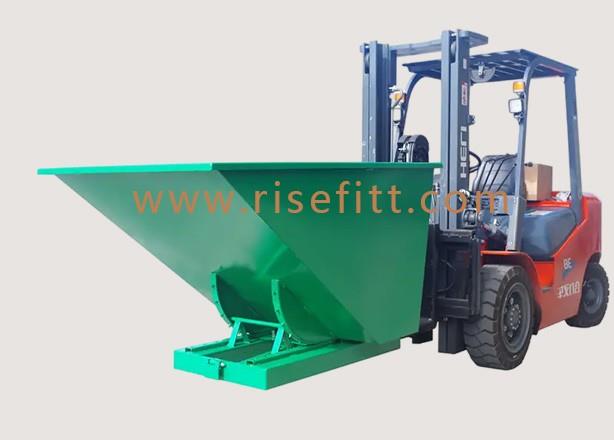

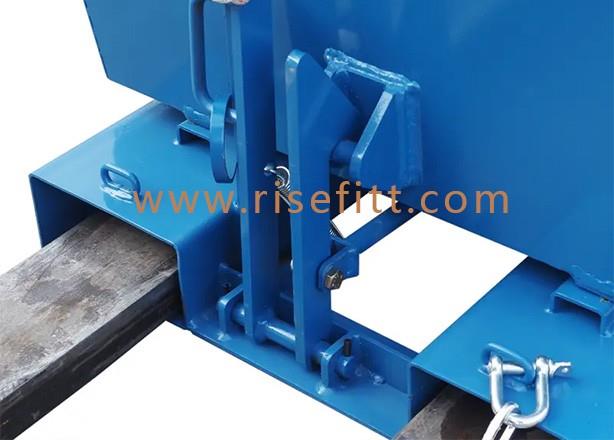

Spring pressure plate on the base frame for automatic emptying. Also with manual tipping. Tipping containers are expectionally suited to waste sorting, they can be supplied in colors as recommended by the public waste collection service.
-
Casters are optional
-

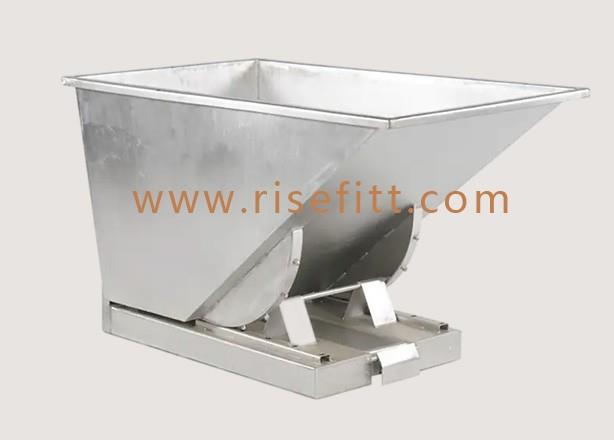

Stainless steel material is optional
| Model | Capacity7(cu,m) | Dimensions(mm) | SWL(kg) | Weight(kg) |
| RF-TS-150 | 0.15 | 815x760x580 | 1200 | 80 |
| RF-TS-300 | 0.3 | 1235x840x750 | 1500 | 115 |
| RF-TS-600 | 0.6 | 1525x865x870 | 2000 | 145 |
| RF-TS-900 | 0.9 | 1525x1215x1045 | 2000 | 155 |
| RF-TS-1100 | 1.1 | 1700x1215x1045 | 2000 | 195 |
| RF-TS-1600 | 1.6 | 2073x1066x1248 | 2000 | 235 |
| RF-TS-2000 | 2.0 | 2073x1316x1248 | 2000 | 280 |
| RF-TS-2500 | 2.5 | 2073x1566x1248 | 2000 | 300 |
| RF-TS-3000 | 3.0 | 2073x1866x1248 | 2000 | 331 |
