RF-FCH Forklift Coil Handling Extension

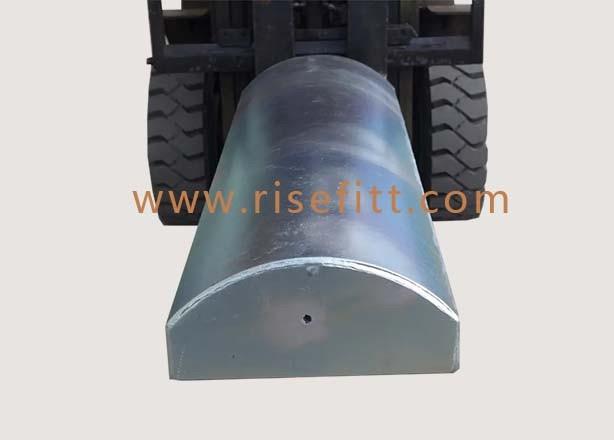

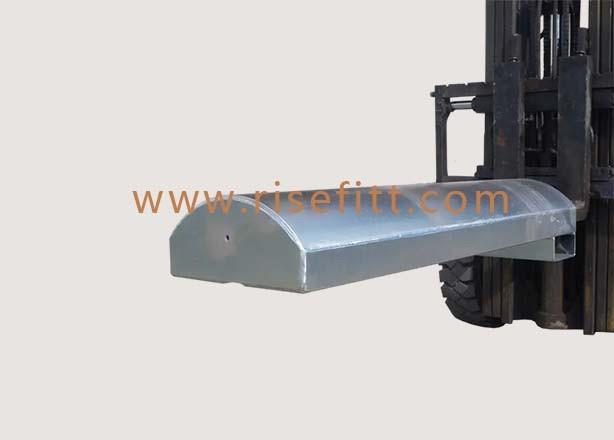

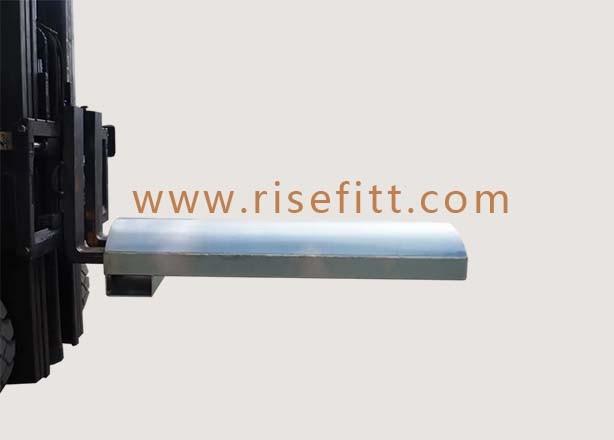

This forklift coil handling extension support slips over both forks simultaneously which enables easier carrying of larger steel coils and rolls of wire.

Description
Specification
Parameters

This forklift coil handling extension support slips over both forks simultaneously which enables easier carrying of larger steel coils and rolls of wire.


  • The coil handling support slips over both forks simultaneously which gives a greater bearing area.

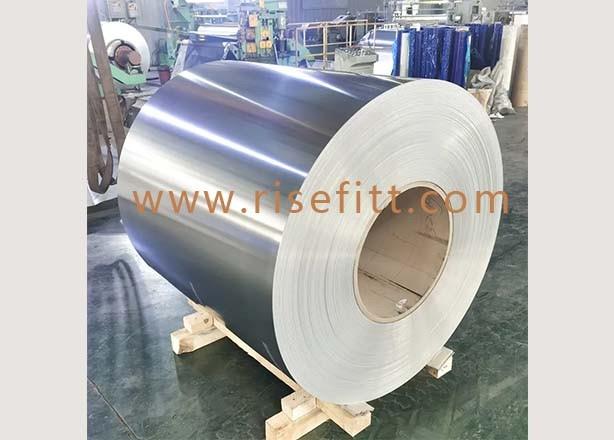

  • This allows for the carrying of larger steel coils, rolls of wire, sheet polythene etc.

  • By using this forklift coil attachment, product damage to the internal core of the rolls caused by the forklift forks is prevented.

  • The extension lengths available are:  1525mm (minimum fork length required 1050mm) and 1830mm (minimum fork length required 1200mm).


Model  Capacity (kg) Sleeve Length (mm) Min Fork Length (mm) Max Fork Size (mm)





RF-FCH 100-1525 2000 1525 1050 100 x 60
RF-FCH 100-1830 2000 1830 1200 100 x 60
RF-FCH 125-1525 2000 1525 1050 130 x 60
RF-FCH 125-1830 2000 1830 1200 130 x 60
RF-FCH 150-1525 2000 1525 1050 160 x 70
RF-FCH 150-1830 2000 1830 1200 160 x 70
