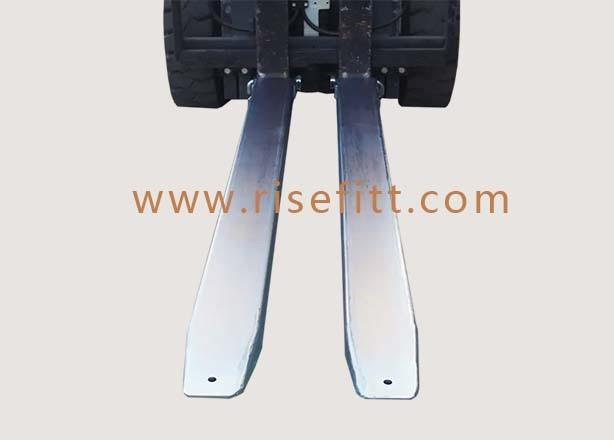

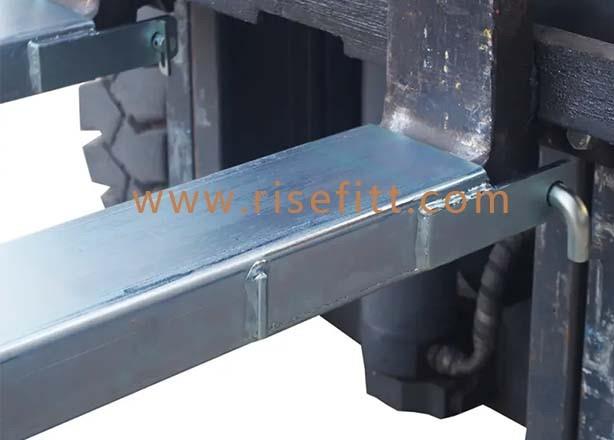

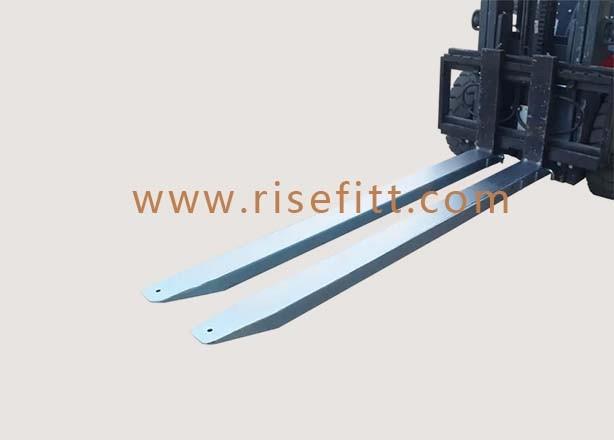

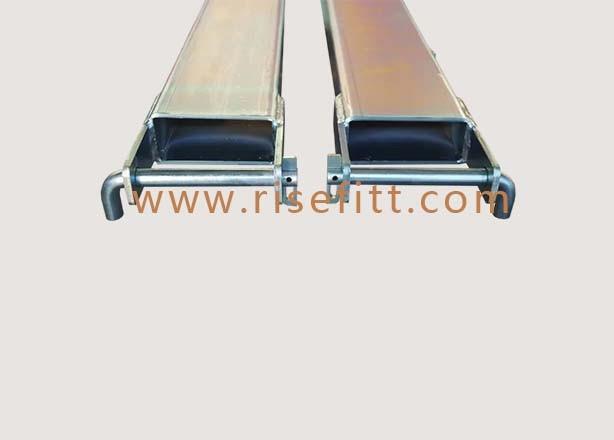

RF-FS Fork Extension Slipper

Fork Extension Slippers/ Tines have been designed with a slim profile to extend the flexibility of forklifts.

Description
Specification
Parameters
  • Fork slippers extend the versatility of your lift truck

  • The *SWL shown here is the maximum, however it varies depending on forklift capacity - refer to load chart provided on fork slippers and forklift capacity

  • Galvanised Finish

  • Load Centre: 600mm


Fork Extension Slippers/ Tines have been designed with a slim profile to extend the flexibility of forklifts. Our Fork Extension Slippers/ Tines extend the versatility of the fork truck

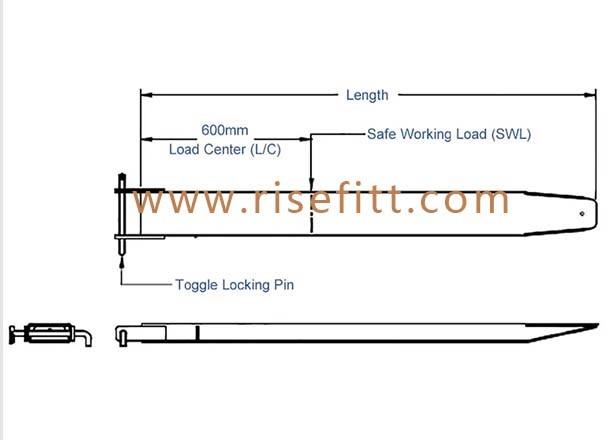

The safe working load (SWL) is measured per pair at 600mm load centre

These slim profile slippers have been designed and manufactured in accordance with AS2359.15 which requires the slippers used for general usage to be not longer than 167% of the supporting tines length.


Model Length(mm) To suit Max Tin size(mm) SWL@600mm(kg) Weight/pair(kg)
RF-FS1-16 1600 100x45 3000 50
RF-FS1-18 1800 100x45 3000 56
RF-FS1-21 2100 100x45 3000 66
RF-FS1-24 2400 100x45 3000 75
RF-FS2-16 1600 130x50 4500 60
RF-FS2-18 1800 130x50 4500 66
RF-FS2-21 2100 130x50 4500 78
RF-FS2-24 2400 130x50 4500 88
RF-FS3-16 1600 155x55 6500 91
RF-FS3-18 1800 155x55 6500 102
RF-FS3-21 2100 155x55 6500 119
RF-FS3-24 2400 155x55 6500 136
RF-FS3-30 3000 155x55 6500 170
RF-FS4-18 1800 160x65 8500 133
RF-FS4-21 2100 160x65 8500 155
RF-FS4-24 2400 160x65 8500 177
RF-FS4-30 3000 160x65 8500 221
