RF-TEJ Series Tilting Extension Jib

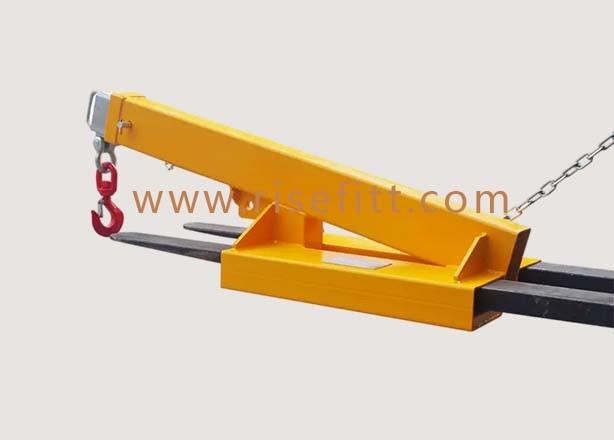

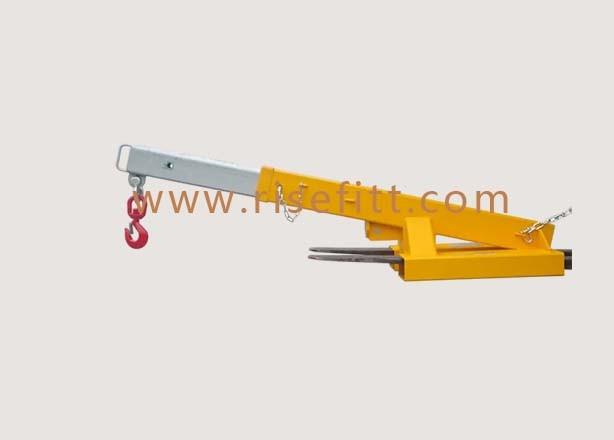

This tilting extension jib is designed as an affordable general purpose jib able to manoeuvre in confined spaces.
Description
Specification
Parameters

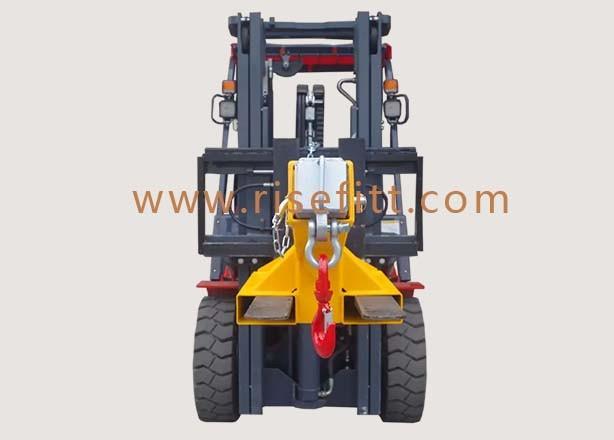

This tilting extension jib is designed as an affordable general purpose jib able to manoeuvre in confined spaces. This slip-on jib is held to the forklift by a safety chain. Please contact RF for loading specifications of each model.
| Model | Max. SWL(kg) | Fork Pocket Size(mm) | Fork Pocket Center(mm) | HCG(mm) | VCG(mm) | Weight(kg) |
| RF-TEJ350 | 3500 | 185x65 | 300 | 580 | 110 | 115 |
| RF-TEJ470 | 4700 | 185x65 | 350 | 600 | 120 | 140 |
| RF-TEJ750 | 7500 | 230x110 | 875 | 680 | 105 | 390 |
