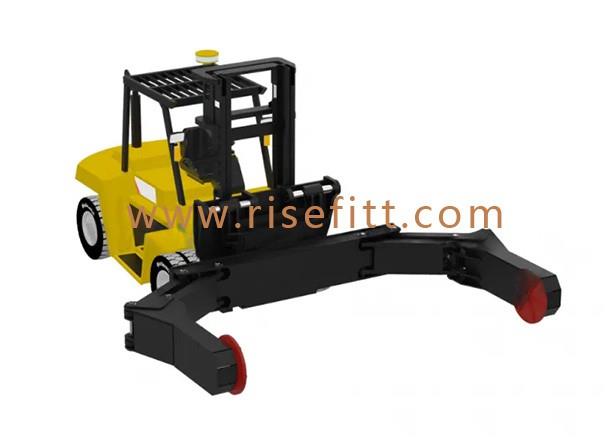

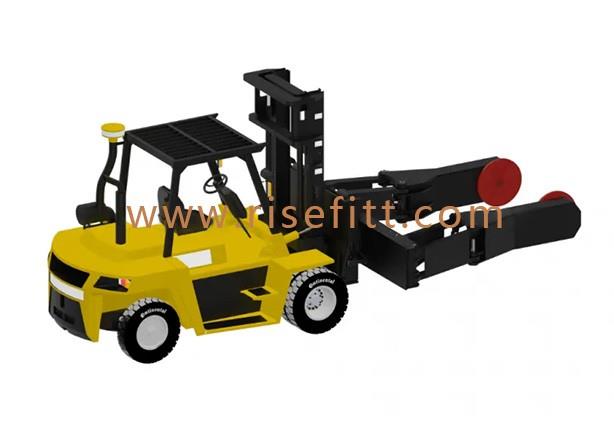

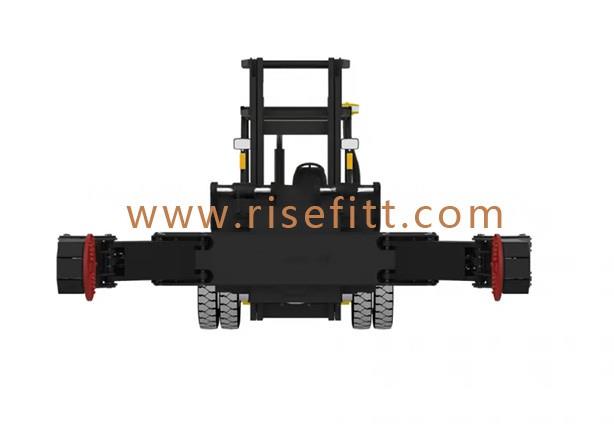

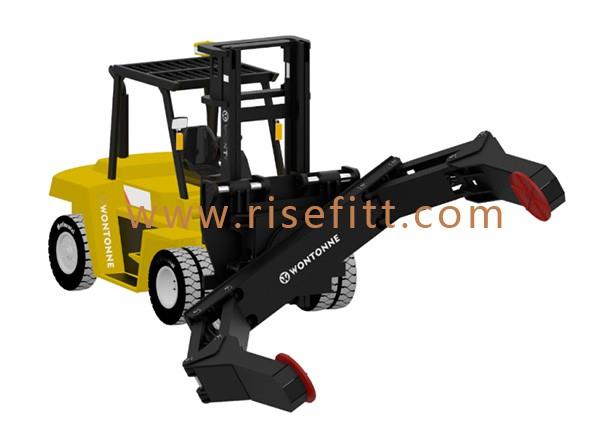

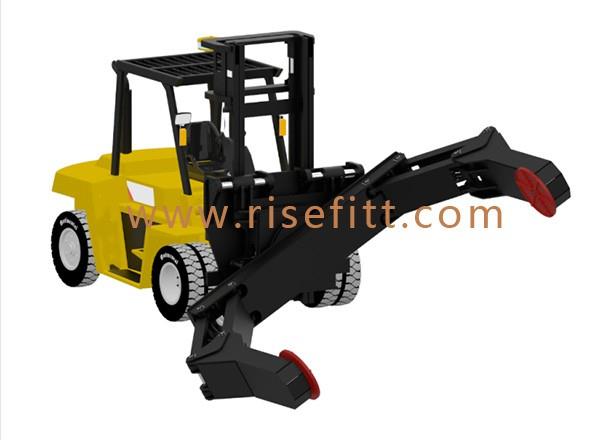

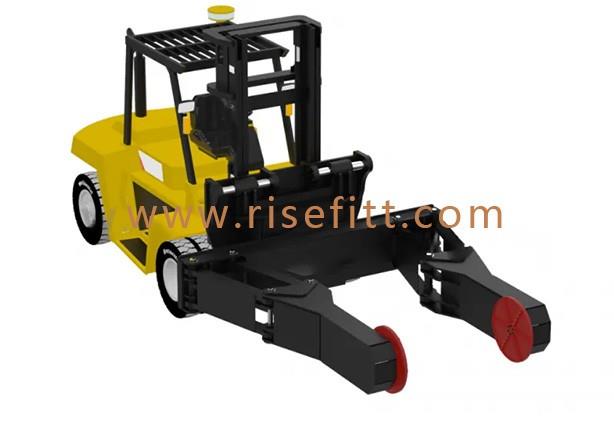

Designed for ease of on-site assembly and serviceability such as loaders, agricultural tractors, and mining trucks, etc. Wontonne heavy-duty tire handlers are engineered to meet the most demanding tire handling applications in the mining, ports, and intermodal market segments. Tire handlers can ensure safety, improve work efficiency and avoid tire damage caused by improper operation.
Introduce:
Designed for ease of on-site assembly and serviceability such as loaders, agricultural tractors, and mining trucks, etc. Wontonne heavy-duty tire handlers are engineered to meet the most demanding tire handling applications in the mining, ports, and intermodal market segments. Tire handlers can ensure safety, improve work efficiency and avoid tire damage caused by improper operation.
Features:
1. “Plug-and-play”– easy to install and assemble. 2. Optimized tire handler designs: reduced lost load and full-rated tire handling capacity on truck attachment combinations. 3. Optimized flow settings with fully calibrated hydraulics to enhance tire handler performance.
4. Tire handler attachment designed for seamless body rotation and clear sight line throughout most of the handling operations. 5. 4 functions, hydraulic control improves tire handling performance. The body side shifting range of ±150mm, body rotation of 120°, and grab pad rotation of 100° enable easy handling of tires, rims, and wheels.
Parameters

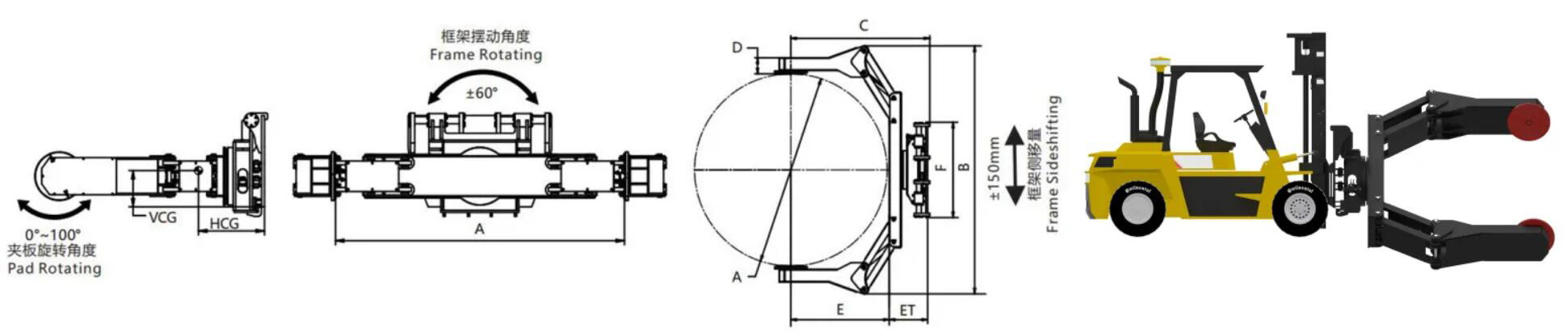

| Capacity |
Load Center |
Model No. |
Mounting Class |
Opening R ange | Max Width | Arm Length | Arm Thickness | Min Rotating Center | Frame Width |
Vertical Center of Gravity |
Horizontal Center of Gravity |
Weight |
Effective Thickness |
| kg | mm | A mm | B mm | C mm | D mm |
E mm |
F mm |
VCG mm |
HCG mm |
kg |
ET mm |
||
| 5200 | 1850 | TH52A-3430* ③ | ③ | 1320~3430 | 4680 | 2618 | 300 | 1850 | 1800 | ③ | ③ | ③ | ③ |
*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
