RF-DB-7C/12C Dock Board

This Dock Board stand up to the use and abuse that is common to warehousing and distribution. Their design is for the unusual parking application.

Description
Specification
Parameters

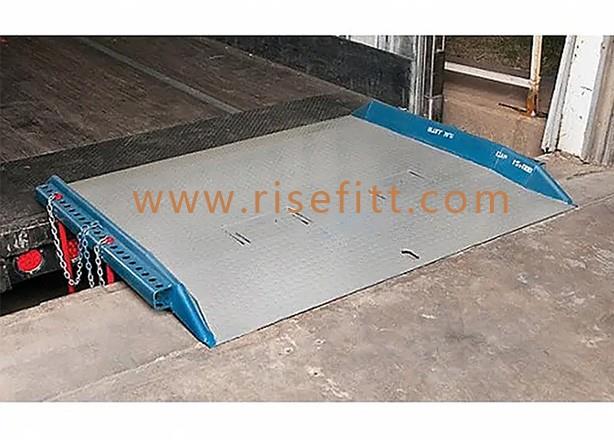

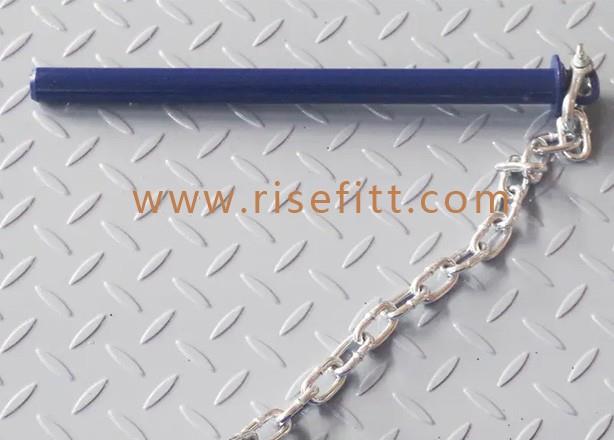

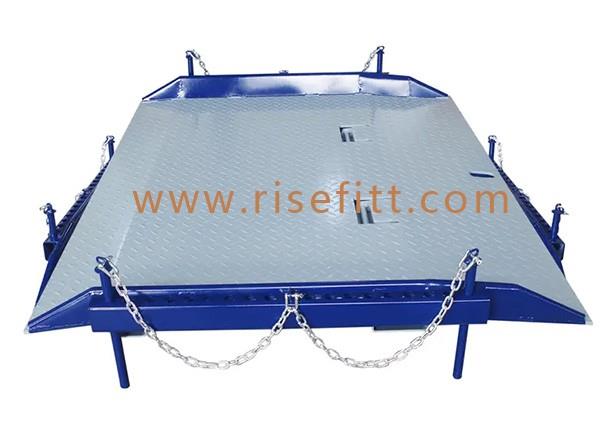

This Dock Board stand up to the use and abuse that is common to warehousing and distribution. Their design is for the unusual parking application. Sometimes a truck cannot park flush against a dock and must stop short. This is called a "park out". The four pin locking solution assures that the board is locked in place for safe use. These boards are not recommended for railcar application. Standard capacities of 7T and 12T carry the ISO certification. Higher capacities and different sizes available.



Model Capacity(kg)
Width(mm) Pin Length(mm)
14% Grade Height Up(mm)
19% Grade Height Up(mm) Weight(kg)
RF-DB-7C6072 7000 1524 610
216 380 275
RF-DB-7C7284 7000 1830 762
254 330 431
RF-DB-7C7872 7000 1980 610 216 280 356
RF-DB-7C8496 7000 2134 915 305
380 486
RF-DB-12C6072 12000 1524 610
216 380 396
RF-DB-12C7284 12000 1830 762
254 330 528
RF-DB-12C7872 12000 1980 610 216 280 492
RF-DB-12C8496 12000 2134 915 305
380 680
