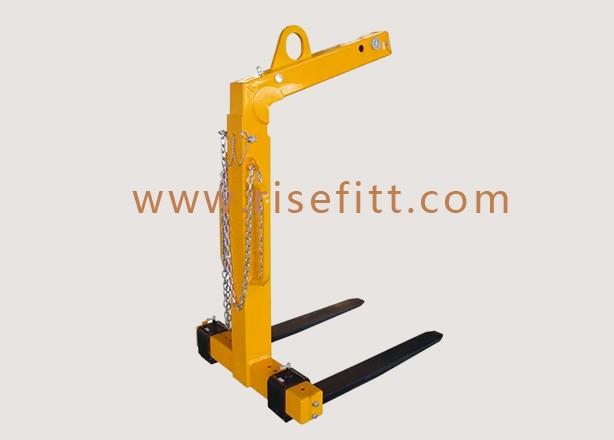

RF-CYL Series Auto-balance Crane Pallet Forks

The self levelling pallet crane forks in this range come with the added benifit of a high quality double spring mechanism which provides smooth and reliable self balancing action and ensures the forks are level when loaded.

Description
Specification
Parameters

The self levelling pallet crane forks in this range come with the added benifit of a high quality double spring mechanism which provides smooth and reliable self balancing action and ensures the forks are level when loaded.

 These pallet lifters are perfectly equipped with adjustable tines and height adjustability. Both models balancing systems engage when their shackle are manually hooked into the appropriate notch.


Model WLL(kg) Adjustable Fork Width(mm) Hook Height(mm) Effective Height(mm) Fork Size(mm) Overall Size(mm) Weight(kg)
RF-CYL10 1000kg 350-900 1420-1920 1100-1600 100x30x1000 1120x920x1530 140
RF-CYL20 2000kg 400-900 1655-2355 1300-2000 120x40x1000 1140x920x1775 220
RF-CYL30 3000kg 450-900 1720-2420 1300-2000 120x50x1000 1140x920x1850 280
RF-CYL50 5000kg 530-1000 1710-2410 1300-2000 150x60x1000 1160x1020x1850 380
