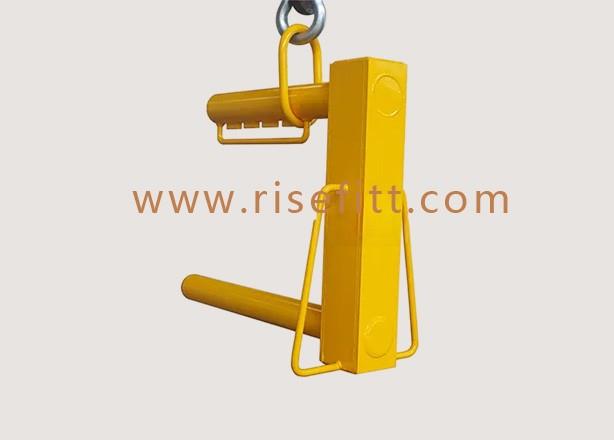

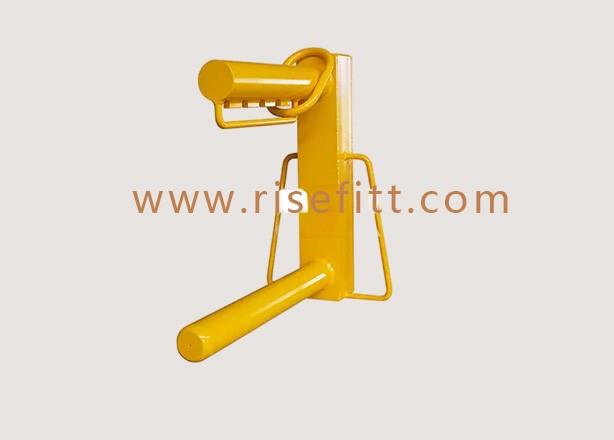

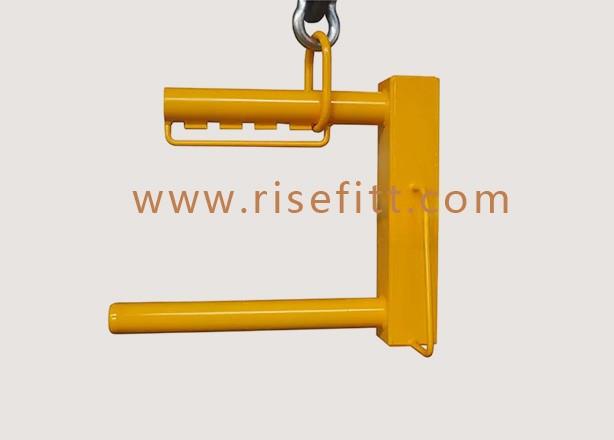

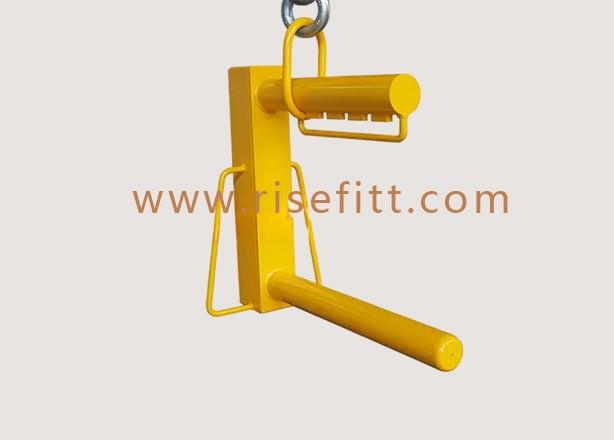

RF-ATTS Steel Coil Lifting Hooks
The Coil Hook is balanced between loaded and unloaded by moving the lifting ring along the suspension bar.
Description
Specification
Parameters
The Safe Working Load (SWL) of this unit varies between 1 – 5 tonne (refer chart below) depending on type chosen.
This unit is suitable for lifting coils up to 1200 mm in width.

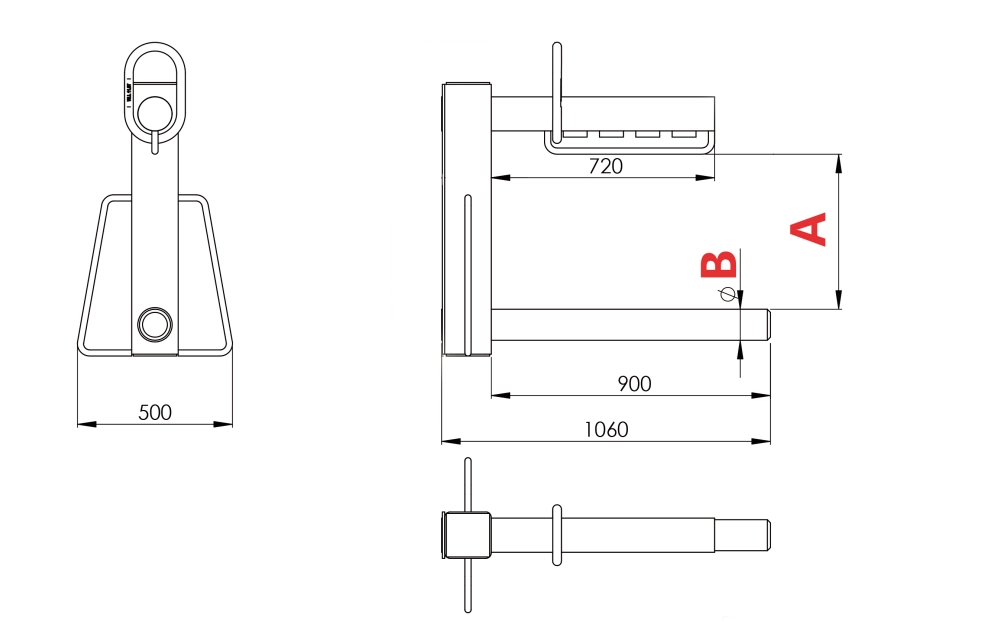

| Model |
SWL(t) |
Weight(kg) | "A"(mm) | "B"(mm) |
|
CL1TR |
1.0 |
130 |
400 | Dia. 70 |
|
CL2TR |
2.0 | 150 |
500 |
Dia. 80 |
| CL3TR | 3.0 | 180 | 600 | Dia. 90 |
| CL5TR | 5.0 | 250 | 800 |
Dia. 100 |
