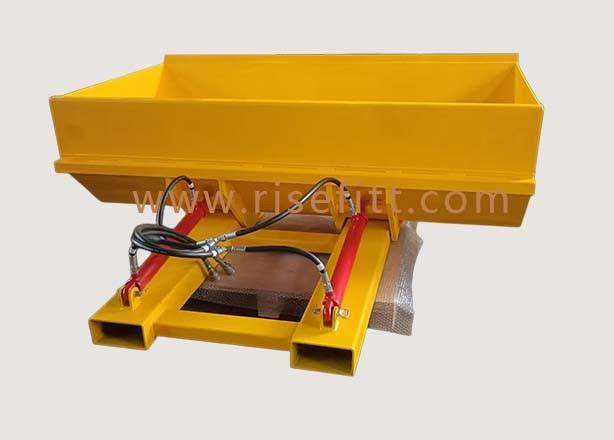

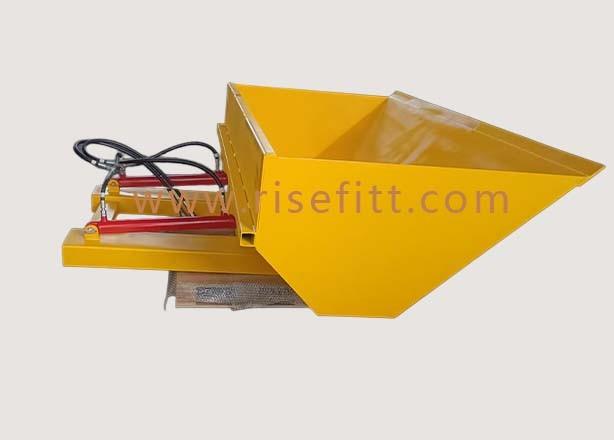

RF-DBB Series Drop Bottom Bin

The RF-DBB Drop Bottom Bin is a heavy duty unit manufactured from 3mm plate and is reinforced to handle all types of solid waste product.

Description
Specification
Parameters

The RF-DBB Drop Bottom Bin is a heavy duty unit manufactured from 3mm plate and is reinforced to handle all types of solid waste product. Able to be transported by either forklift or crane, the "Drop Floor Empty" function is activated by a lever and remains within the footprint of the bin. This makes it ideal for space-restricted situations where other bins cannot be used. The lever release can be used with a rope for emptying from the seat of your forklift. Shock absorbing system removes all impact from forklift or crane during emptying. Enamel painted finish.


Model Volume Capacity Overall
Length
Overall
Width
Overall
Height
Fork Pocket
Size
Fork Pocket
Center
Weight

m³ kg mm mm mm mm mm kg
RF-DBB 500 0.5 1000
1025 1200 745 160x65 684 200
RF-DBB 800 0.8 1000 1025 1200 1045 160x65 684 225
RF-DBB 1100 1.1 1000 1025 1200 1345 160x65 684 250


Model Volume Capacity Overall
Length
Overall
Width
Overall
Height
Fork Pocket
Size
Fork Pocket
Center
Weight

m³ kg mm mm mm mm mm kg
RF-DBB 500 0.5 1000
1025 1200 745 160x65 684 200
RF-DBB 800 0.8 1000 1025 1200 1045 160x65 684 225
RF-DBB 1100 1.1 1000 1025 1200 1345 160x65 684 250
