RF-D-Series Side Shifter

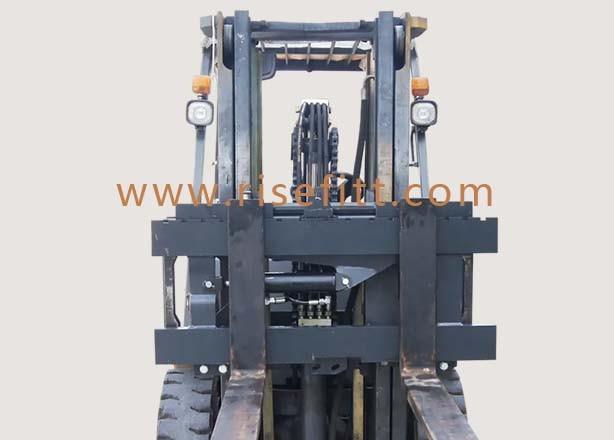

Sideshifter is the most common attachment installed in forklift, greatly improves the flexibility and moving efficiency of the forklift.

Description
Specification
Parameters

Sideshifter is the most common attachment installed in forklift, greatly improves the flexibility and moving efficiency of the forklift. It is suitable for various occasions using forklift for handling and stacking.


Features

● Integrate cylinder and sideshifter frame into a component, saving room and widening the view,

● Easily installed, directly connected to fork carriage

● The lower bearings used wear-resistant nylon-material to ensure smoothly move.

● High efficiency, easy maintenance and operation

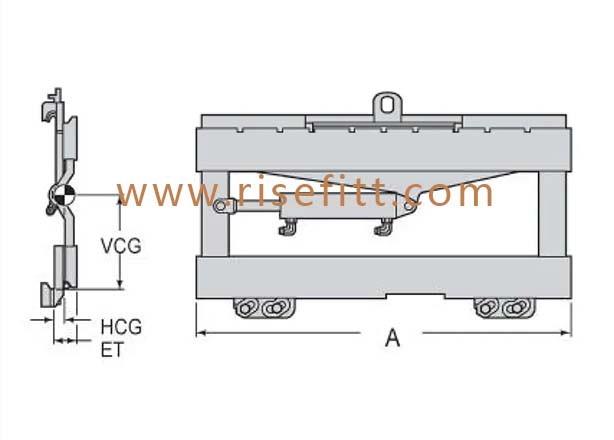

Model Capacity@
Load Center
Mounting
Class
Carriage
Width
Minimum Truck Carriage Width VCG ET HCG Weight

kg@mm
mm mm mm mm mm kg
RF-SSS-45D-01C-1100 4500/500 Ⅲ 1100 965 392 66 33 141
RF-SSS-45D-01C-1250 4500/500 Ⅲ 1250 1170 392 66 33 155
RF-SSS-45D-01C-1330 4500/500 Ⅲ 1330 1170 392 66 33 161
RF-SSS-70D-01D-1530 6800/600 IV 1530 1220 440 84 44 275
RF-SSS-70D-01D-1845 6800/600 IV 1845 1520 440 84 44 317
RF-SSS-70D-01D-2400 6800/600 IV 2400 2080 440 84 44 380


Model Capacity@
Load Center
Mounting
Class
Carriage
Width
Minimum Truck Carriage Width VCG ET HCG Weight

kg@mm
mm mm mm mm mm kg
RF-SSS-45D-01C-1100 4500/500 Ⅲ 1100 965 392 66 33 141
RF-SSS-45D-01C-1250 4500/500 Ⅲ 1250 1170 392 66 33 155
RF-SSS-45D-01C-1330 4500/500 Ⅲ 1330 1170 392 66 33 161
RF-SSS-70D-01D-1530 6800/600 IV 1530 1220 440 84 44 275
RF-SSS-70D-01D-1845 6800/600 IV 1845 1520 440 84 44 317
RF-SSS-70D-01D-2400 6800/600 IV 2400 2080 440 84 44 380
