Forklift Positioner(RF-K/G/H Series)

Fork positioner attachment is a device typically attached to the forks of a forklift or other material handling equipment.

Description

Specification

Parameters

Fork positioners are one of the most important forklift attachments for diesel and electric forklift trucks.Fork positioner attachment allow forklift operators to adjust forks quickly and accurately to handle different width material. Forklift operators are able to operate forklift control levers to adjust forks distances without getting off forklift truck and leaving their seats. Side shifting function is optional.Riggerte fork positioners can be installed on all brands forklifts.

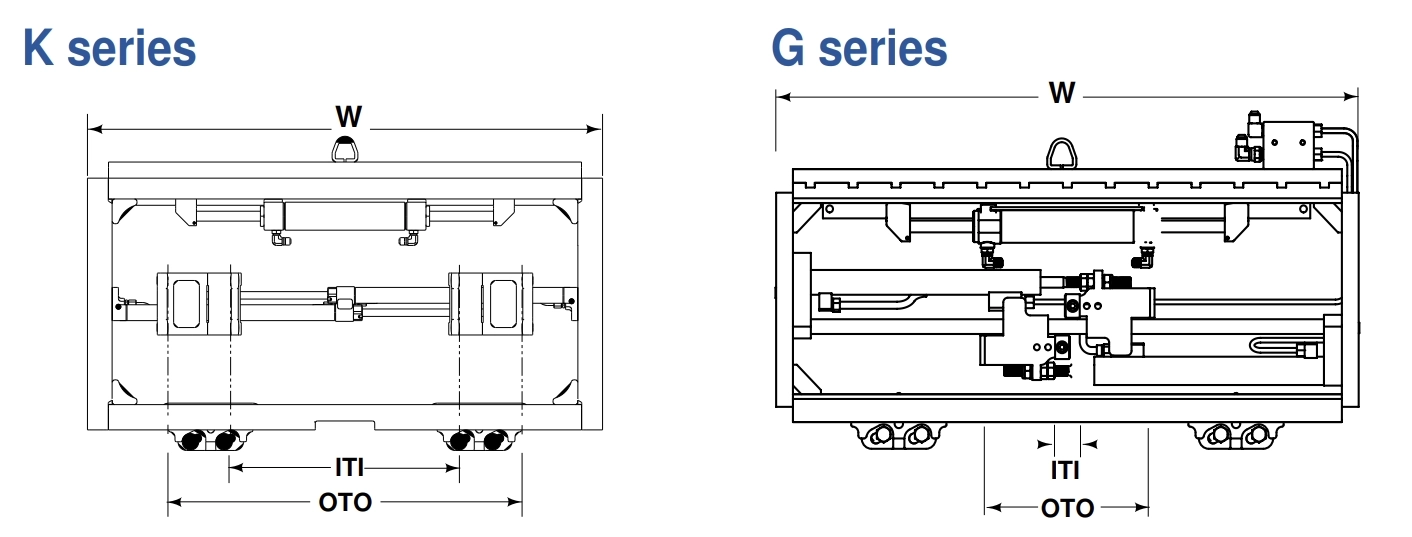

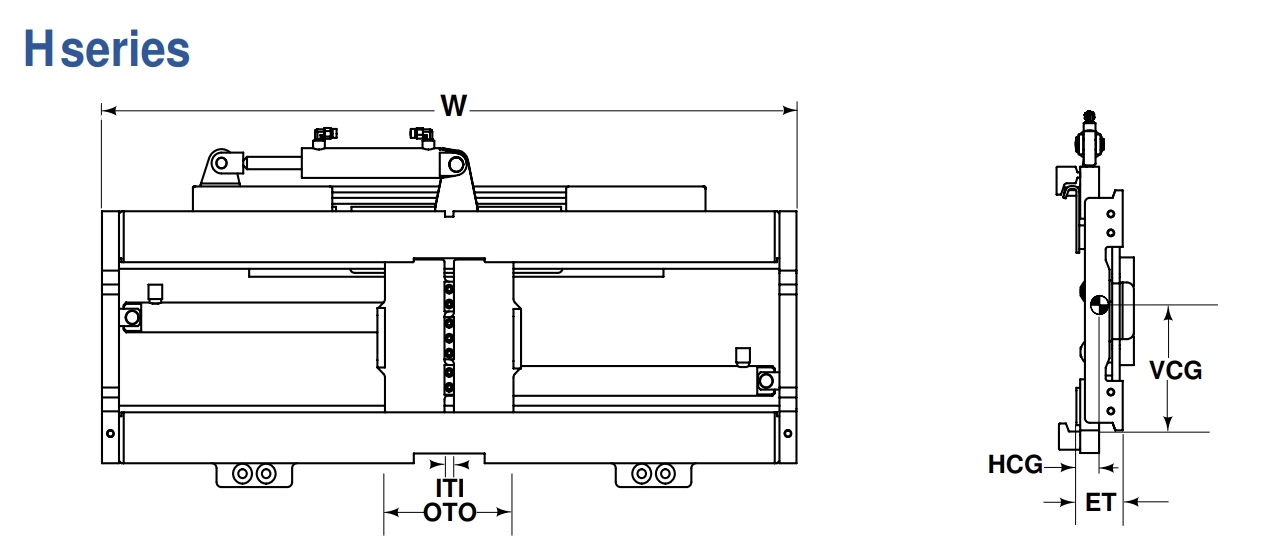

Model	Capacity (kg@mm)	Mounting Class	Opening Range (mm)	Carriage Width(mm)	Min. Carriage Width (mm)	VCG (mm)	Weight (kg)	Effective Thickness(mm)	HCG(mm)
RF-FP-2.5TK-S1000	2500@600	II	50-876	1000	895	225	65	60	30
RF-FP-2.5TK-S1040	2500@600	II	50-910	1040	895	225	68	60	30
RF-FP-3TK-S1070	3000@600	III	50-946	1070	935	250	83	65	30
RF-FP-3TK-S1100	3000@600	III	50-976	1100	935	250	88	65	30
RF-FP-2.5TG-S1020	2500@600	II	310-925	1020	895	225	75	61	25
RF-FP-2.5TG-S1040	2500@600	II	310-945	1040	895	225	78	61	25
RF-FP-3TG-S1100	3000@600	III	340-975	1100	935	293	93	66	30
RF-FP-4.5TH-S1250	42500@600	III	350-1160	1250	1040	300	215	90	45
RF-FP-4.5TH-S1550	4500@600	III	350-1460	1550	1250	300	259	90	45
RF-FP-4.6TH-S1200	3000@600	III	50-946	1200	1000	303	205	90	45
RF-FP-4.6TH-S1500	3000@600	III	50-976	1500	1215	303	252	90	45
RF-FP-5.5TH-S1550	5500@600	IV	310-925	1550	1250	430	280	107	57
RF-FP-5.5TH-S1830	5500@600	IV	310-945	1830	1550	430	330	107	57
RF-FP-7TH-S2180	7000@600	IV	340-975	2180	1830	450	490	138	59
RF-FP-8TH-S2400	8000@600	IV	340-975	2400	2150	450	520	138	59

Model	Capacity (kg@mm)	Mounting Class	Opening Range (mm)	Carriage Width(mm)	Min. Carriage Width (mm)	VCG (mm)	Weight (kg)	Effective Thickness(mm)	HCG(mm)
RF-FP-2.5TK-S1000	2500@600	II	50-876	1000	895	225	65	60	30
RF-FP-2.5TK-S1040	2500@600	II	50-910	1040	895	225	68	60	30
RF-FP-3TK-S1070	3000@600	III	50-946	1070	935	250	83	65	30
RF-FP-3TK-S1100	3000@600	III	50-976	1100	935	250	88	65	30
RF-FP-2.5TG-S1020	2500@600	II	310-925	1020	895	225	75	61	25
RF-FP-2.5TG-S1040	2500@600	II	310-945	1040	895	225	78	61	25
RF-FP-3TG-S1100	3000@600	III	340-975	1100	935	293	93	66	30
RF-FP-4.5TH-S1250	42500@600	III	350-1160	1250	1040	300	215	90	45
RF-FP-4.5TH-S1550	4500@600	III	350-1460	1550	1250	300	259	90	45
RF-FP-4.6TH-S1200	3000@600	III	50-946	1200	1000	303	205	90	45
RF-FP-4.6TH-S1500	3000@600	III	50-976	1500	1215	303	252	90	45
RF-FP-5.5TH-S1550	5500@600	IV	310-925	1550	1250	430	280	107	57
RF-FP-5.5TH-S1830	5500@600	IV	310-945	1830	1550	430	330	107	57
RF-FP-7TH-S2180	7000@600	IV	340-975	2180	1830	450	490	138	59
RF-FP-8TH-S2400	8000@600	IV	340-975	2400	2150	450	520	138	59
