Quick fork mount push pull - Sheet save types

1. The chamfer platen corner can prevent the slip sheet from tearing

2. It can be installed without disassembling the fork, saving time

3. Ability to separate the slip sheet from the cargo and reuse the slip sheet.

4. The two platens of a push pull have two different spacing to choose.

5. The structure is strong and the vision is good

Description

Specification

Parameters

Optional parts:
1. Quickly release lower hook
2. Different mounting class: 2A or 3A
3. Different push off distance
The quick fork mount push pull can be quickly and easily disassembled and installed without disassembling the forklift forks. It is very suitable for goods that require intermittent operation of slip sheet packaging

Parameters

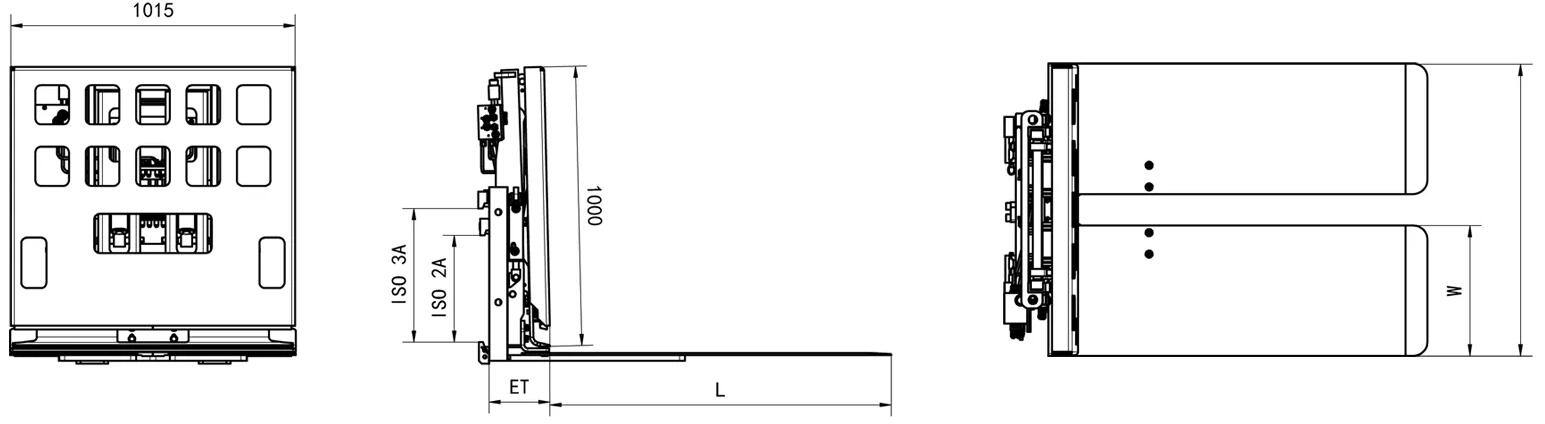

Capacity	Load Center	Model No.	Mounting Class	Faceplate Size	Platen Size	Outer Platen Spacing	Push Stroke	Min. Truck Carriage Width	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm			A * B mm	W * L mm	C mm	S mm	mm	HCG mm	kg	ET mm
Sheet-save Types
1600	600	QPA16E-001A	ISO 2A	1015*1000	455*1220	1020/1170	1270	820	241	494	220
1600	600	QPA16E-001B	ISO 3A	1015*1000	455*1220	1020/1170	1270	820	241	494	220
1600	600	QPA16E-002A	ISO 2A	1015*1000	380*1220	870/1020	1270	820	227	481	220
1600	600	QPA16E-002B	ISO 3A	1015*1000	380*1220	870/1020	1270	820	227	481	220
2000	600	QPA20E-001A	ISO 2A	1015*1000	455*1220	1020/1170	1270	820	245	499	220
2000	600	QPA20E-001B	ISO 3A	1015*1000	455*1220	1020/1170	1270	820	245	499	220
2000	600	QPA20E-002A	ISO 2A	1015*1000	380*1220	870/1020	1270	820	231	486	220
2000	600	QPA20E-002B	ISO 3A	1015*1000	380*1220	870/1020	1270	820	231	486	220

*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus

Capacity	Load Center	Model No.	Mounting Class	Faceplate Size	Platen Size	Outer Platen Spacing	Push Stroke	Min. Truck Carriage Width	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm			A * B mm	W * L mm	C mm	S mm	mm	HCG mm	kg	ET mm
Sheet-save Types
1600	600	QPA16E-001A	ISO 2A	1015*1000	455*1220	1020/1170	1270	820	241	494	220
1600	600	QPA16E-001B	ISO 3A	1015*1000	455*1220	1020/1170	1270	820	241	494	220
1600	600	QPA16E-002A	ISO 2A	1015*1000	380*1220	870/1020	1270	820	227	481	220
1600	600	QPA16E-002B	ISO 3A	1015*1000	380*1220	870/1020	1270	820	227	481	220
2000	600	QPA20E-001A	ISO 2A	1015*1000	455*1220	1020/1170	1270	820	245	499	220
2000	600	QPA20E-001B	ISO 3A	1015*1000	455*1220	1020/1170	1270	820	245	499	220
2000	600	QPA20E-002A	ISO 2A	1015*1000	380*1220	870/1020	1270	820	231	486	220
2000	600	QPA20E-002B	ISO 3A	1015*1000	380*1220	870/1020	1270	820	231	486	220
