The overall structure of the push pull has a wide field of vision, dexterity, and easy operation;
Load and unload goods without pallets, and use low-cost sliding support to solve the pallet storage space;
The alloy fork plate is durable, smooth and smooth, which can avoid damage to parts of the cargo that the slip sheet contacts during operation
The push pull is specially designed for forklifts. It enables the forklift to push out and pull back the goods on the slip sheet. The push pull reduces the cost of pallets in the warehouse or factory because the goods will be transferred on cheap slip sheets instead of expensive pallets.

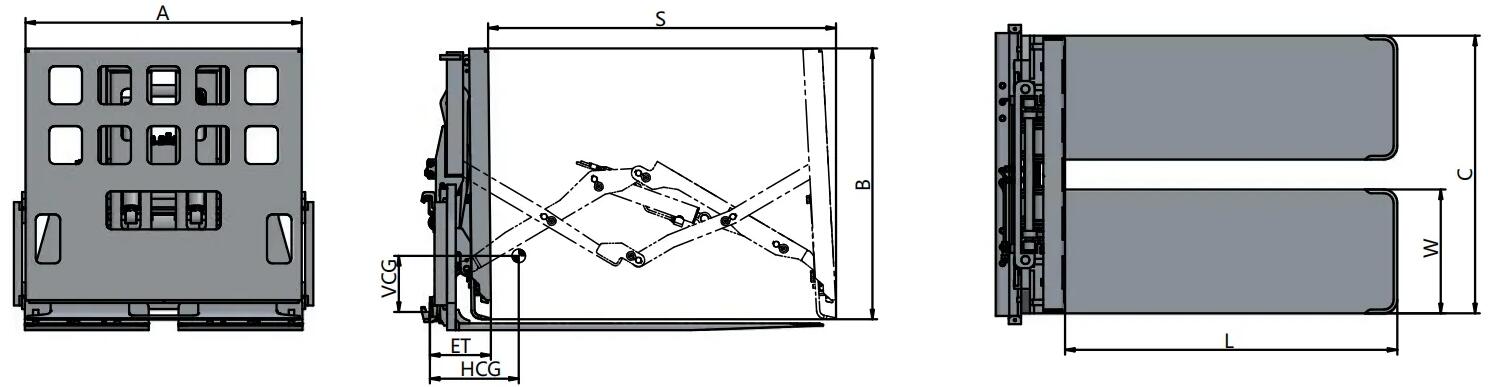

Parameters
| Capacity |
Load Center |
Model No. |
Mounting Class |
Faceplate Size |
Platen Size |
Outer Platen Spacing |
Push Stroke |
Min. Truck Carriage Width |
Horizontal Center of Gravity |
Weight |
Effective Thickness |
| kg | mm |
A * B mm |
W * L mm |
C mm |
S mm |
mm |
HCG mm |
kg |
ET mm |
||
| Without Sheet-Save Type | |||||||||||
| 1600 | 600 | PPS16E-001A | ISO 2A | 1015*1000 | 455*1220 | 1020/1220 | 1270 | 920 | 313 | 537 | 235 |
| 1600 | 600 | PPS16E-001B | ISO 3A | 1015*1000 | 455*1220 | 1020/1220 | 1270 | 920 | 302 | 550 | 235 |
| 2000 | 600 | PPS20E-001A | ISO 2A | 1015*1000 | 455*1220 | 1020/1220 | 1270 | 920 | 316 | 595 | 235 |
| 2000 | 600 | PPS20E-001B | ISO 3A | 1015*1000 | 455*1220 | 1020/1220 | 1270 | 920 | 308 | 622 | 235 |
*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
The push pull is specially designed for forklifts. It enables the forklift to push out and pull back the goods on the slip sheet. The push pull reduces the cost of pallets in the warehouse or factory because the goods will be transferred on cheap slip sheets instead of expensive pallets.
| Capacity |
Load Center |
Model No. |
Mounting Class |
Faceplate Size |
Platen Size |
Outer Platen Spacing |
Push Stroke |
Min. Truck Carriage Width |
Horizontal Center of Gravity |
Weight |
Effective Thickness |
| kg | mm |
A * B mm |
W * L mm |
C mm |
S mm |
mm |
HCG mm |
kg |
ET mm |
||
| Without Sheet-Save Type | |||||||||||
| 1600 | 600 | PPS16E-001A | ISO 2A | 1015*1000 | 455*1220 | 1020/1220 | 1270 | 920 | 313 | 537 | 235 |
| 1600 | 600 | PPS16E-001B | ISO 3A | 1015*1000 | 455*1220 | 1020/1220 | 1270 | 920 | 302 | 550 | 235 |
| 2000 | 600 | PPS20E-001A | ISO 2A | 1015*1000 | 455*1220 | 1020/1220 | 1270 | 920 | 316 | 595 | 235 |
| 2000 | 600 | PPS20E-001B | ISO 3A | 1015*1000 | 455*1220 | 1020/1220 | 1270 | 920 | 308 | 622 | 235 |
*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
