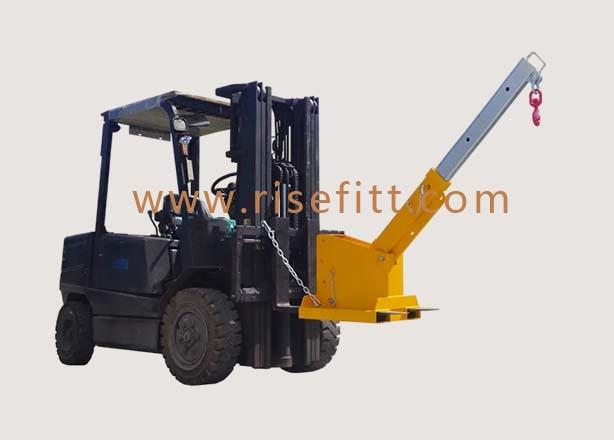

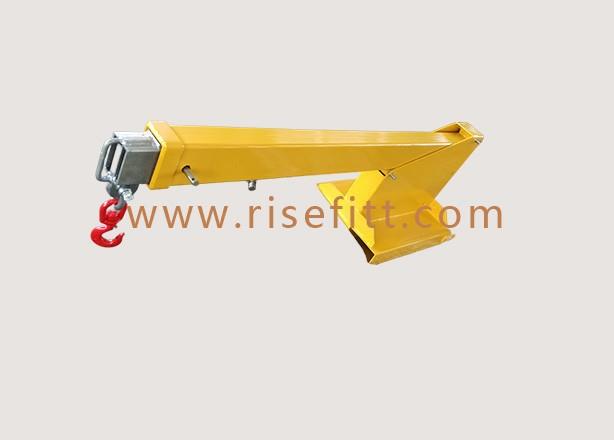

The type RF-TJAS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with a Jib attachment.

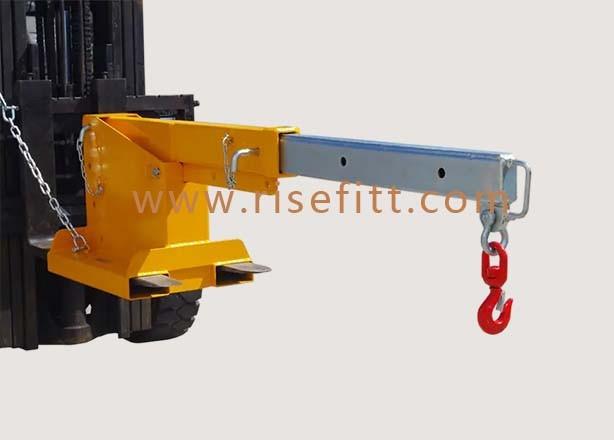

The type RF-TJAS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with a Jib attachment. A maximum height of 1.4 metres can be gained while the Jib can be fully extended to 2.02 metres. This slip-on attachment is held to the Forklift by a safety chain.

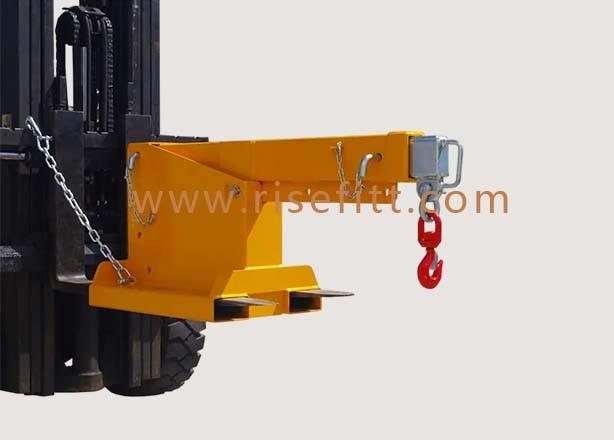

The Jibs overall length when closed is 1.35 metres.
SPECIFICATIONS:
-
Safe Working Load (SWL) 2500kg Max.
-
Unit Weight 130kg
-
Load Centre 825mm
-

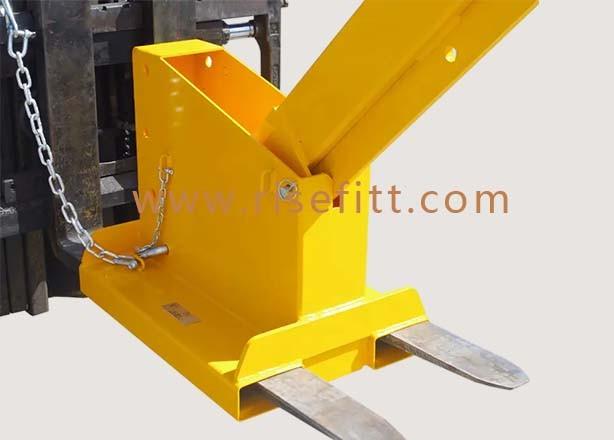

Pocket Size 165 x 65mm
-
Pocket Centres 337 mm
-
Horizontal C of G 650mm
-
Vertical C of G 300mm
