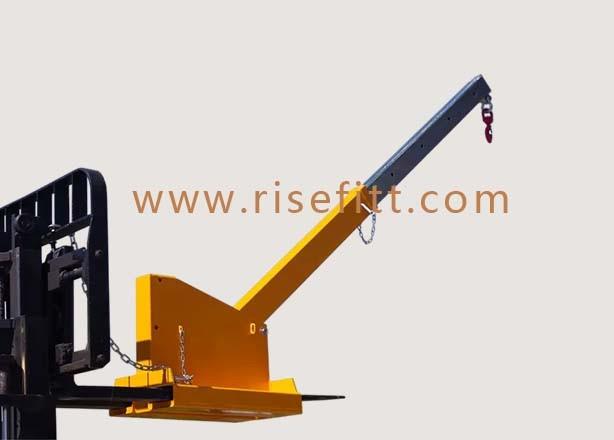

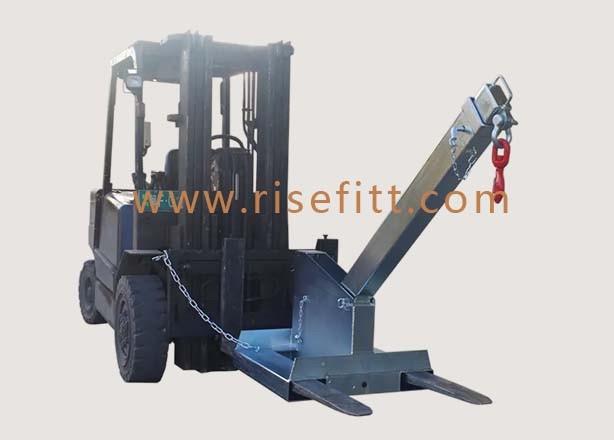

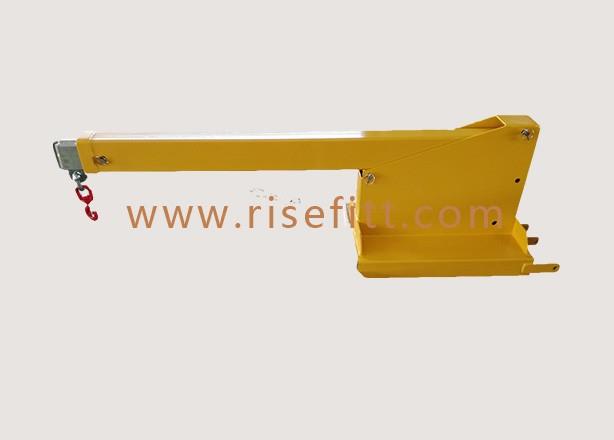

This 4500kg long tilting jib is the most verstatile jib in our range and allows for additional height of up to 2.23 metres.

·        Finish: Zinc plated

·        Safe Working Load: 4500kg (SWL load chart is shown on jib)

·        Load Centre: 770mm

·        HGC: 735mm

·        Jib Length (when closed): 2100mm

·        Jib Length (when extended): 3530mm

·        Overall Dimensions when closed (LxWxH): 2100x520x650mm

·        Fork Pocket Size: 185x65mm

·        Fork Pocket Centres: 322mm

·        Unit Weight: 190kg
