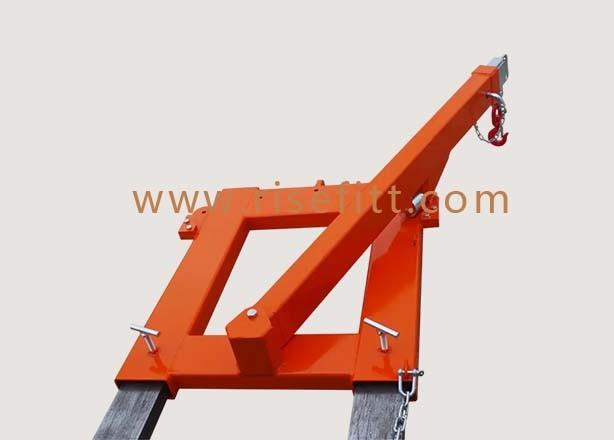

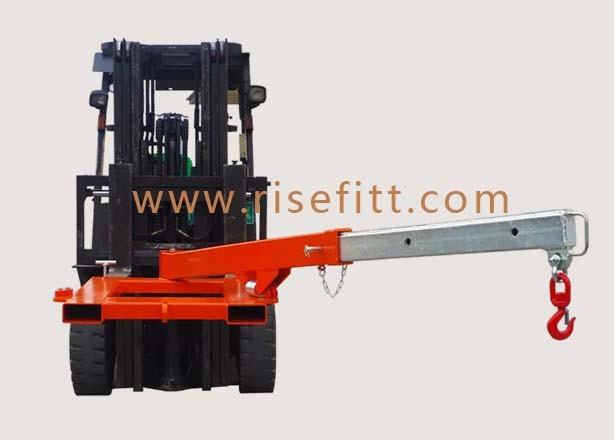

RF-LAH200 Forklift Swing Arm Jib

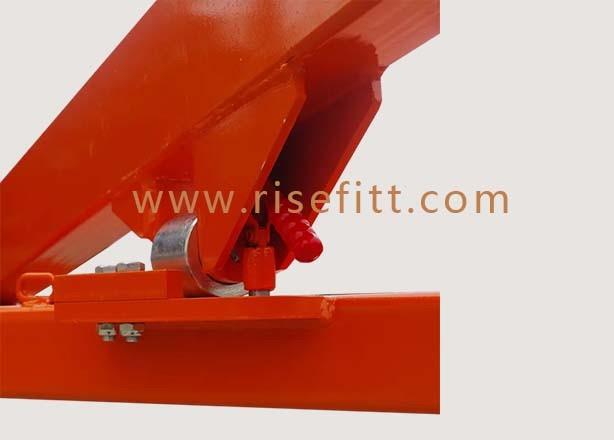

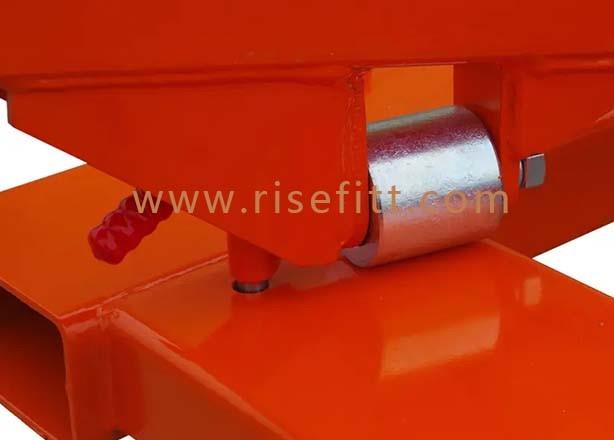

This versatile forklift attachment has five locking points set at 15 degree increments to conveniently slew a load, avoiding the need to reposition a forklift or telehandler whilst on site.
Description
Specification
Parameters
This versatile forklift attachment has five locking points set at 15 degree increments to conveniently slew a load, avoiding the need to reposition a forklift or telehandler whilst on site. The Swing Arm Forklift Jib comes in a painted finish and includes a Manual/Certificate, Safety chain and swivel hook.
FEATURES:
-
Jib slews 30 degrees left and right
-
Jib has an 8-degree tilt for extra height
-
Painted finish
SPECIFICATIONS:
| DESCRIPTION | WORKING LOAD LIMIT (WLL) PER POSITION | |||
| Position | 1 | 2 | 3 | 4 |
| Extension (mm) | 1010 | 1510 | 1995 | 2480 |
| WLL (KG) | 2000 | 1200 | 800 | 600 |
| WORKING LOAD LIMIT (KG) |
HORIZONTAL CENTRE OF GRAVITY (MM) |
VERTICAL CENTRE OF GRAVITY (MM) |
POCKET SIZE (MM) |
POCKET CENTRES (MM) |
UNIT WEIGHT (KG) |
| 2000 | 660 | 60 | 150 x 70 | 650 | 110 |
