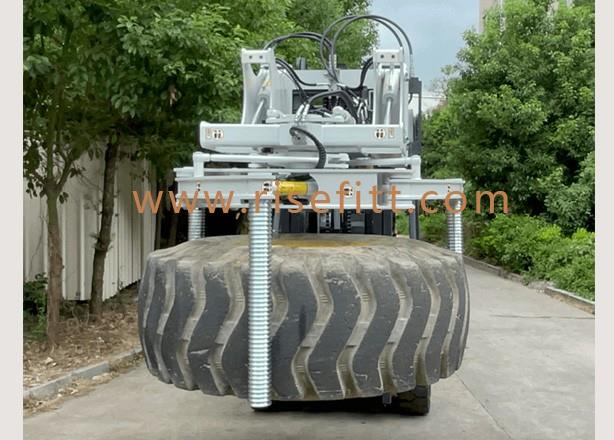

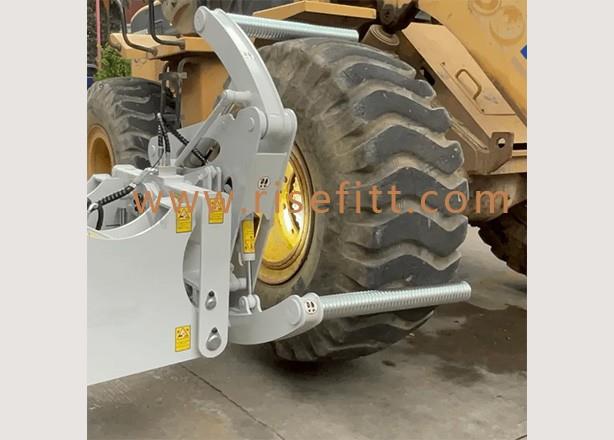

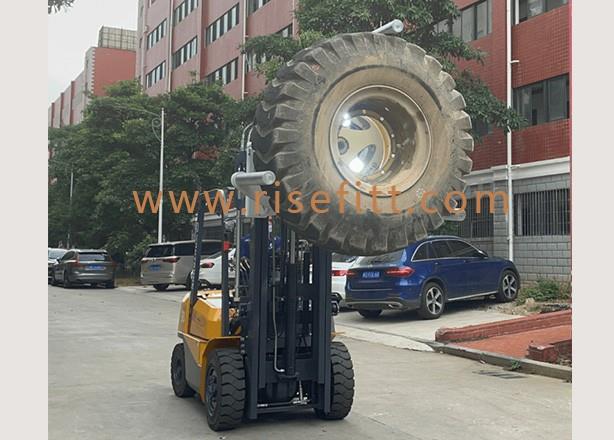

The Tyre Grippers are designed to help tire professionals in a multitude of situations to work faster, hold tires safer, avoid dangerous situations, save time and reduce damages to tires, rims, and vehicles. It is commonly used in Aviation, Military, Mining, Ports, Industrial Trucks, etc.
Features:

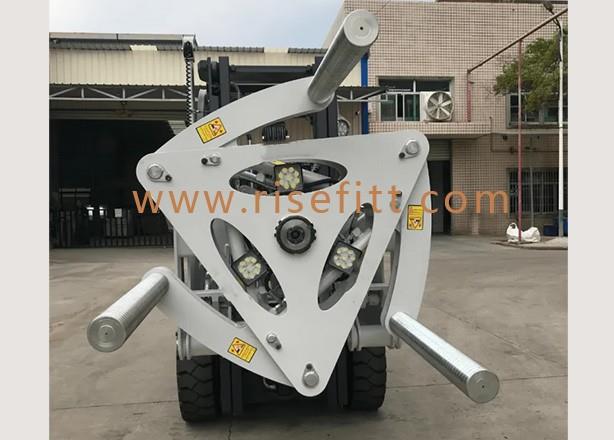

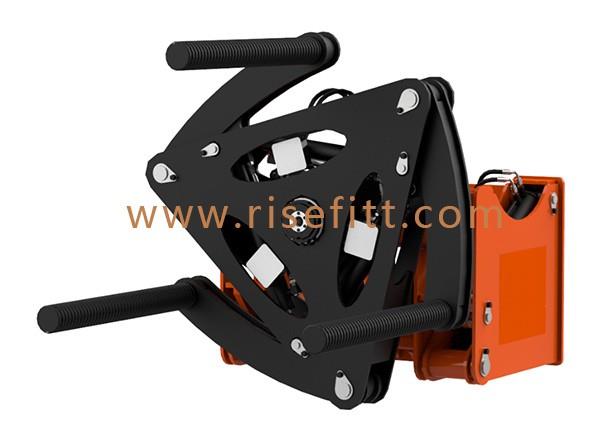

1. Unique 3-point grip can rotate ±25°, which provides optimal control and grip of large tires and wheels.
2. The gripper can work horizontally or vertically tilting 90°. 3. Widely griping range from Ø1300 to Ø2160mm and capacity of 1000kg. 4. An integrated camera and lighting system make it easy and quick to adjust the wheel to the hub and bolts.
5. With accurate and precise rotation and tilting functions, both hard and dangerous manual work is avoided.

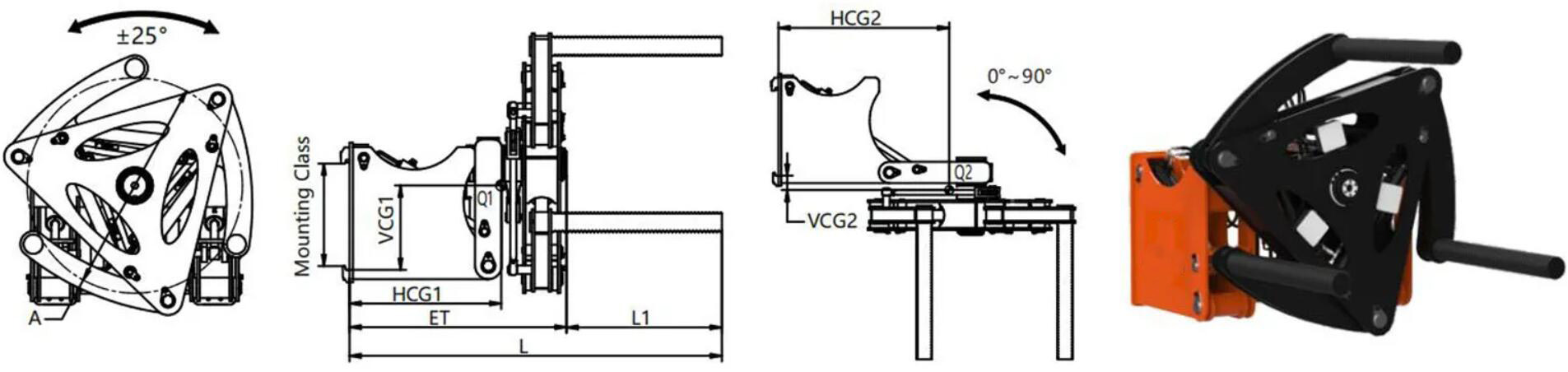

Parameters
| Capacity |
Load Center |
Tyre Diameter |
Model No. |
Mounting Class |
Mounting Angel |
Swiming Angel | Tilt Angel | Total Angle | Arm Length |
Vertical Center of Gravity |
Horizontal Center of Gravity |
Weight |
Effective Thickness |
| kg | mm | A mm | A ° | B ° | L mm |
L1 mm |
VCG1/VCG2 mm |
HCG1/HCG2 mm |
kg |
ET mm |
|||
| 1000 | 1370 | 1300-2160 | PTG10A-2160B | ISO 3A | 0° | ±25° | 0~90° | 1733 | 720 | 393/84 | 706/994 | 800 | 1010 |
*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
