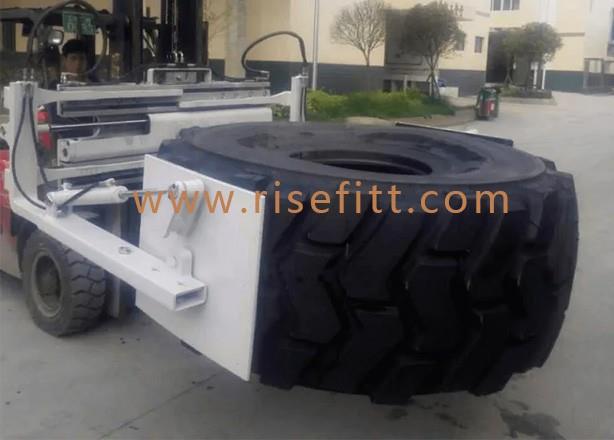

Wontonne tyre clamps are suitable for application scenarios in the tire industry that require a tipping function, meet the requirements of special working conditions, and have competitive prices.
Features:

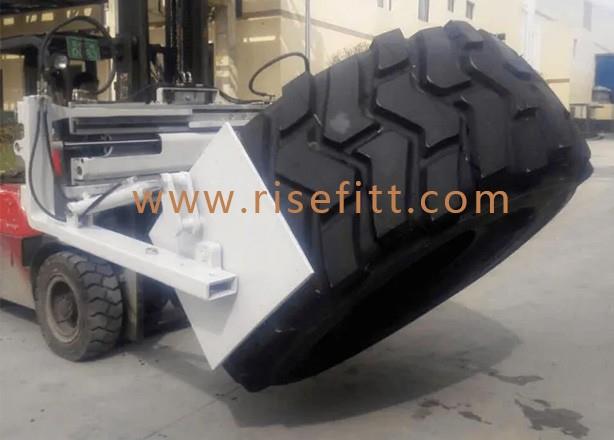

1. Tipping type tyre clamp instead of manual handling, making cargo handling faster and more convenient, saving labor costs.
2. Easy to operate and maintain, improving work efficiency.
3. Excellent driver visibility, and clear view for safe and exact operation.
4. Adapt to a range of tyre sizes.

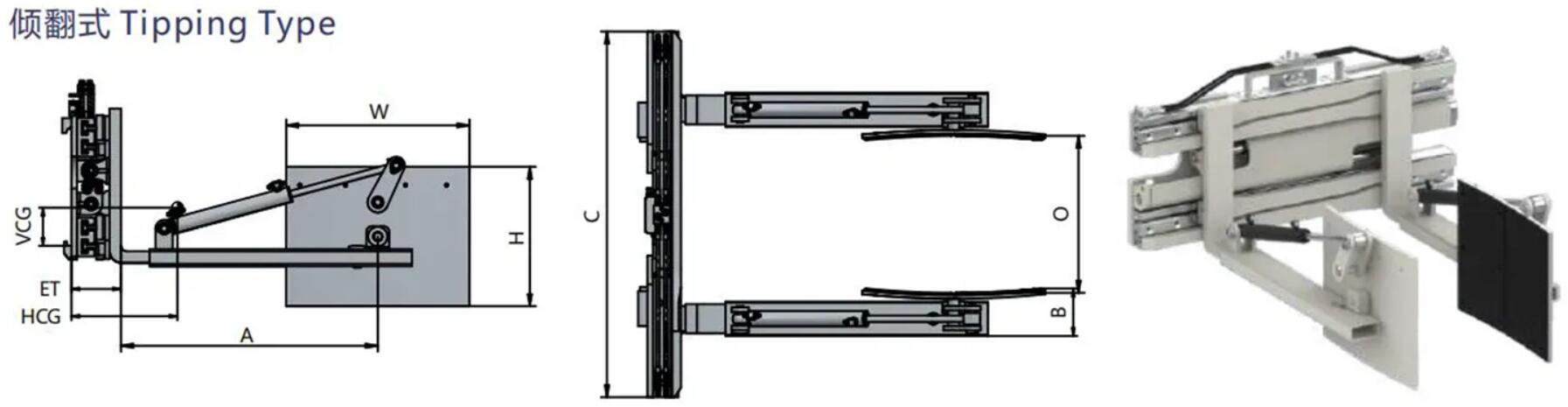

Parameters
| Capacity |
Load Center |
Model No. |
Mounting Class |
Opening Range |
Arm Length |
Arm Thickness |
Frame Width | Contact Pad Size |
Vertical Center of Gravity |
Horizontal Center of Gravity |
Weight |
Effective Thickness |
| kg | mm |
A mm |
B mm |
C mm |
W*H mm |
VCG mm |
HCG mm |
kg |
ET mm |
|||
| 1850 | 1000 | PTT30D-006B | ISO 3A | 700-2500 | 1125 | 210 | 1600 | 800*610 | 169 | 465 | 920 | 218 |
*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
