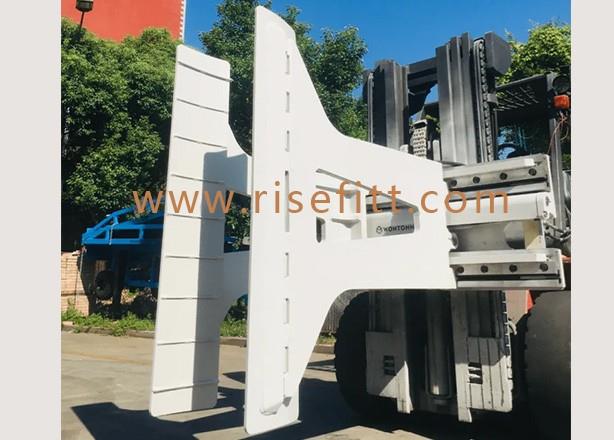

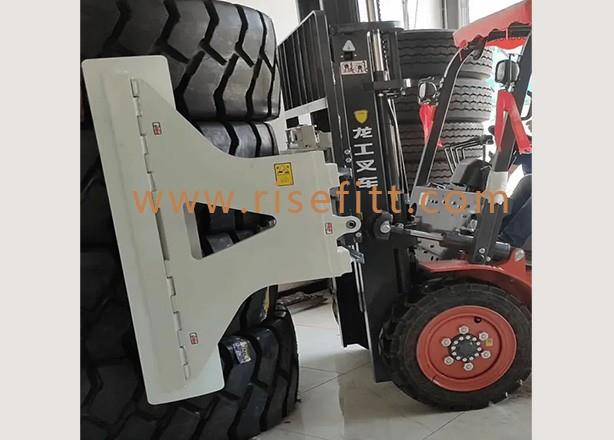

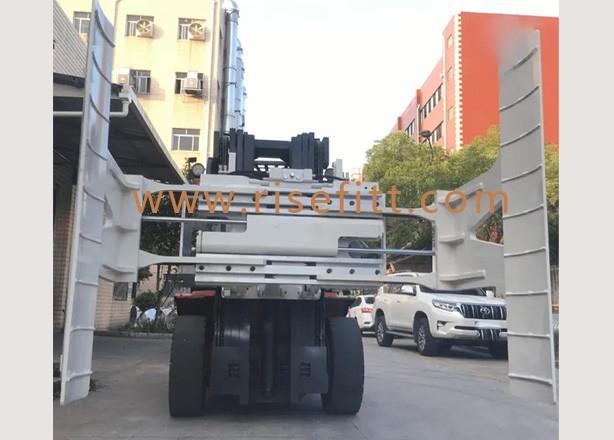

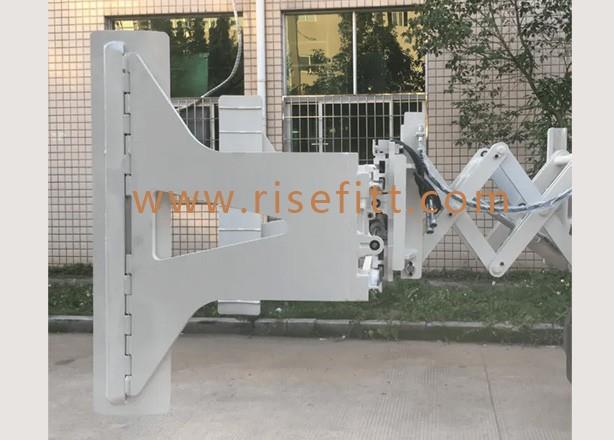

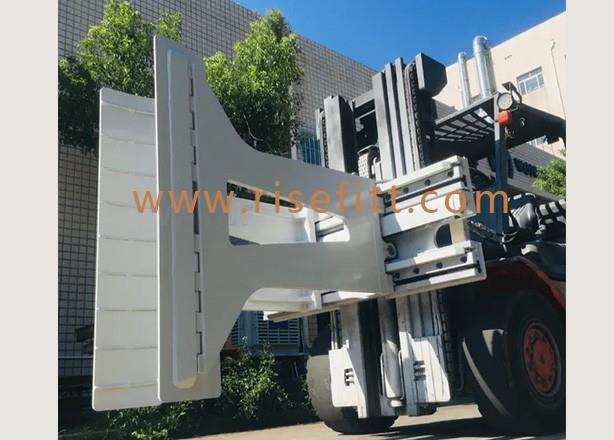

Tyre clamps are widely used in tire industry to handle, load, unload and stack all kinds of tires.
Features:
1. Reasonable design, compact structure, good vision, and easy of operate.
2. One-way valve of the clamp arm oil cylinder has a holding function, ensuring tires get reliable clamping in the process of long-distance transportation operations.
3. Superior arm-slide bearing for extended service life.
4. Bars on the contact pads increase friction and facilitate the tightening of tires.
5. High-performance hydraulic valve design optimizes the clamping arm speed and reduces energy consumption.

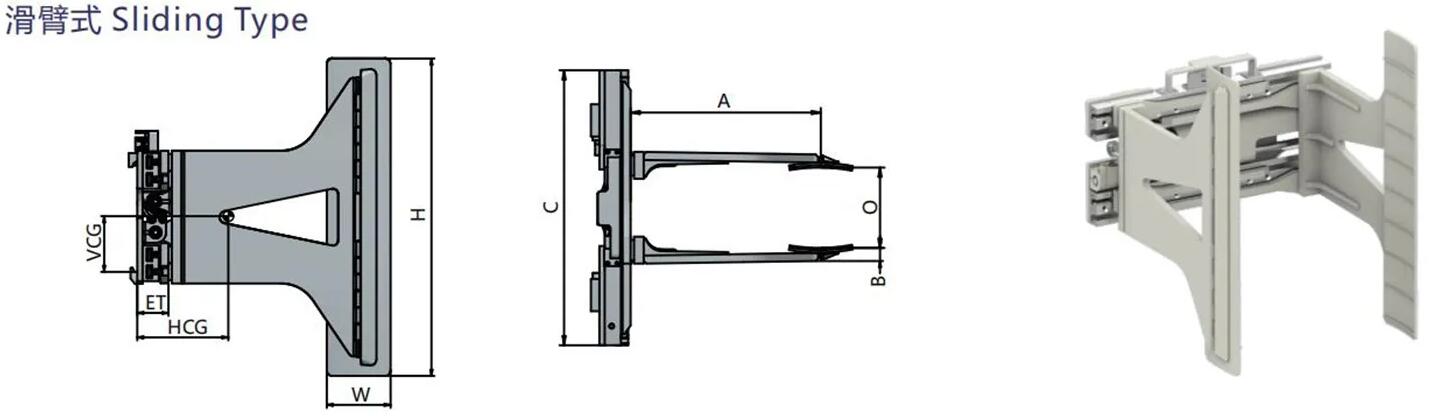

Parameters
| Capacity |
Load Center |
Model No. |
Mounting Class |
Opening Range |
Arm Length |
Arm Thickness |
Frame Width | Contact Pad Size |
Vertical Center of Gravity |
Horizontal Center of Gravity |
Weight |
Effective Thickness |
| kg | mm |
A mm |
B mm |
C mm |
W*H mm |
VCG mm |
HCG mm |
kg |
ET mm |
|||
| 1200 | 900 | PTS20D-200B | ISO 3A | 450-1730 | 900 | 80 | 1040 | 300*1500 | 236 | 462 | 655 | 133 |
| 1200 | 1150 | PTS30D-009B | ISO 3A | 480-2300 | 1150 | 80 | 1600 | 300*1500 | 260 | 475 | 900 | 148 |
*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
