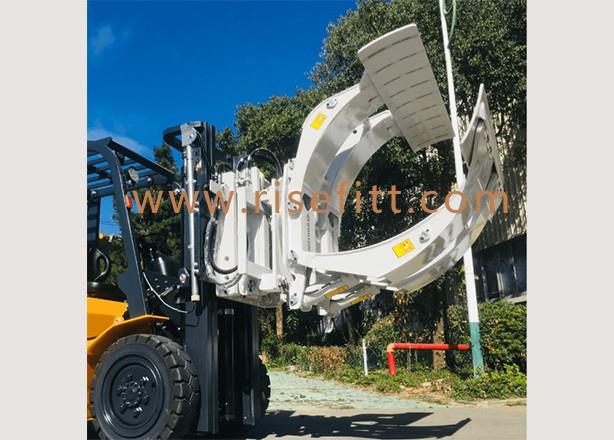

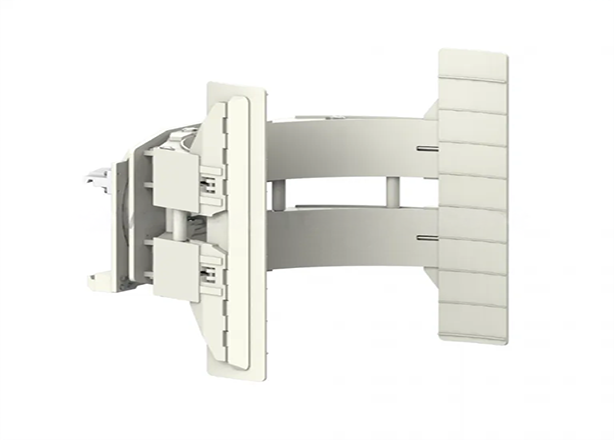

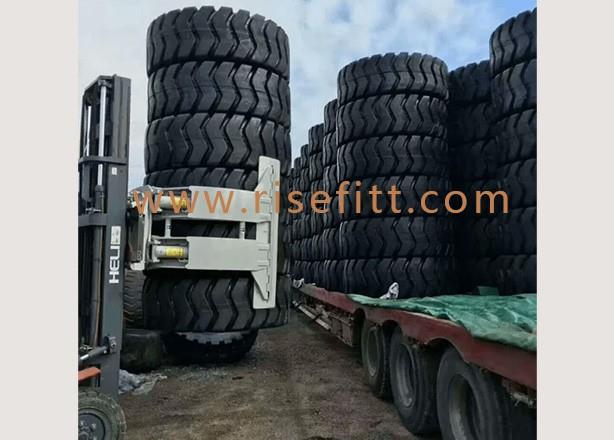

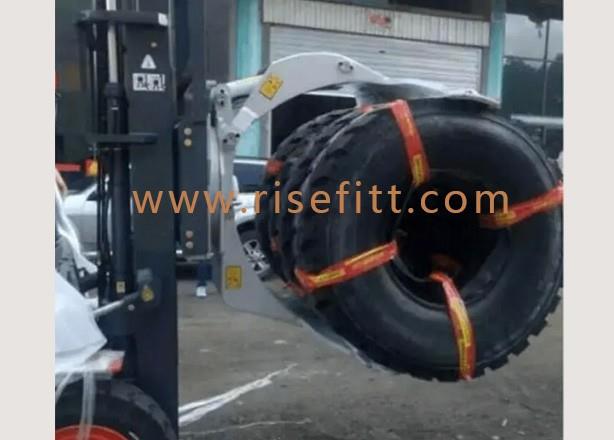

Tyre Clamp (Rotating Type)_Tyre Attachments_Xiamen Ruisheng Feite Machinery Technology Co., Ltd

Features:
1. High safety performance is ensured for its two-way hydraulic rotation within 360°and self-locking at any angle.
2. The ingenious clamp arm design with a smooth surface and small thickness enable it to be operated in a narrow space and reduce the damage to a tyre.
3. The hydraulic elements are designed to be reasonable and durable.
4. The compact structure and light weight increase the forklift’s service life.

Parameters

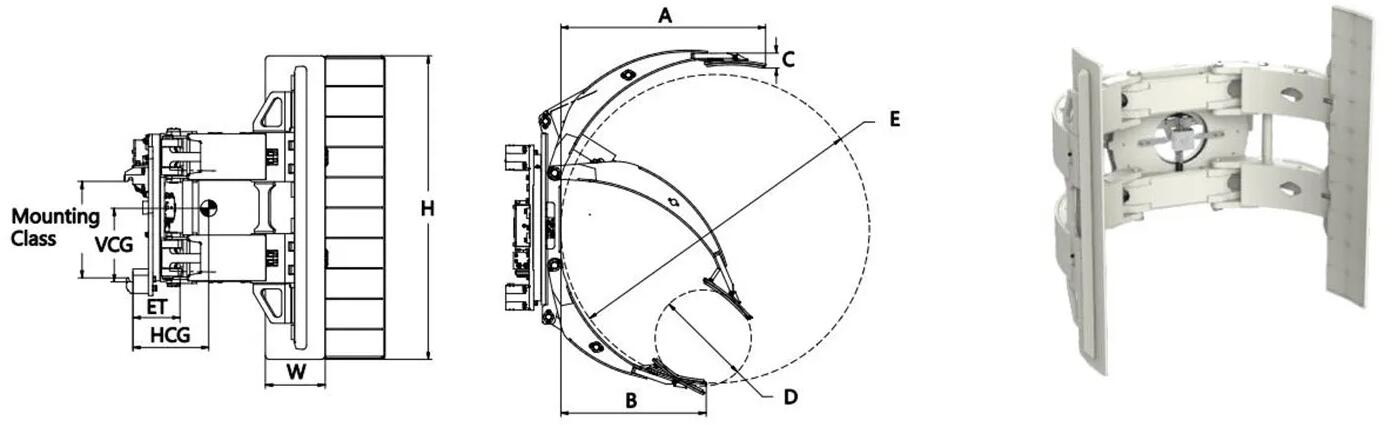

Capacity	Load Center	Tyre Diameter Range	Model No.	Mounting Class	Mounting Angle	Long Arm Length	Short Arm Length	Long Arm Thickness	Contact Pad Size	Vertical Center of Gravity	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm	D-E mm				A mm	B mm	C mm	W*H mm	VCG mm	HCG mm	kg	ET mm
1200	650	410-1300	PTR15G-013A	ISO 2A	0°	864	658	60	230*1500	348	216	426	144
1200	650	410-1300	PTR15G-013B	ISO 3A	0°	864	658	60	230*1500	349	306	438	184
2200	575	350-1150	PTR24G-001B	ISO 3A	0°	820	550	45	300*1500	360	323	678	232
2200	650	440-1300	PTR24G-003B	ISO 3A	0°	899	616	45	300*1500	363	343	686	232
2200	700	440-1400	PTR24G-005B	ISO 3A	0°	950	655	45	300*1500	364	357	721	232
2050	760	490-1525	PTR24G-007B	ISO 3A	0°	1012	718	45	300*1500	363	374	723	232
1950	800	500-1600	PTR24G-008B	ISO 3A	0°	1044	753	45	300*1500	363	385	735	232

*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
