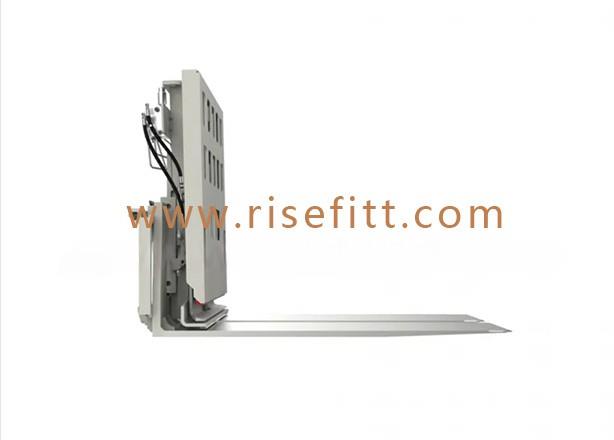

Standard push pull - Sheet save types

1. The push-pull device can quickly and safely pull and transport the goods placed on the skateboard.

2. The standard push-pull device has a side shift function, which is convenient for fine-tuning when pulling or stacking goods

3. The skateboard can be recycled, reused, and reduce costs

4. The design of the sequence valve group makes the operation easy

Description

Specification

Parameters

Options of standard push-pull slip sheets retainable:
1. Different installation levels to adapt to different load-bearing forklifts
2. Different push plate and fork plate sizes to adapt to different sizes of goods

Standard push-pull slip sheets retainable can push and pull the goods on the slip sheet effectively, quickly, and accurately, and keep the slip sheet when pushing out the goods.

Parameters

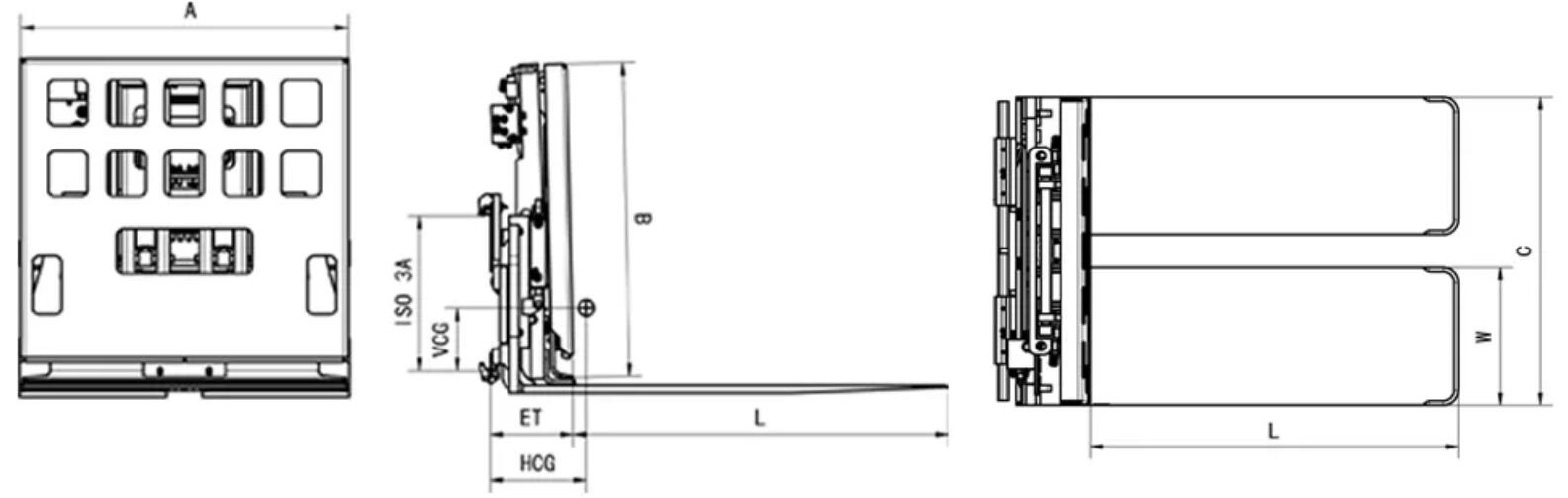

Capacity	Load Center	Model No.	Mounting Class	Faceplate Size	Platen Size	Outer Platen Spacing	Push Stroke	Min. Truck Carriage Width	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm			A * B mm	W * L mm	C mm	S mm	mm	HCG mm	kg	ET mm
Sheet-Save Type
1600	600	PAS16E-001A	ISO 2A	1015*1000	455*1220	1020/1120	1270	920	325	660	270
1600	600	PAS16E-001B	ISO 3A	1015*1000	455*1220	1020/1120	1270	920	312	696	270
2000	600	PAS20E-001A	ISO 2A	1015*1000	455*1220	1020/1120	1270	920	329	664	270
2000	600	PAS20E-001B	ISO 3A	1015*1000	455*1220	1020/1120	1270	920	317	671	270

*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus

Standard push-pull slip sheets retainable can push and pull the goods on the slip sheet effectively, quickly, and accurately, and keep the slip sheet when pushing out the goods.

Capacity	Load Center	Model No.	Mounting Class	Faceplate Size	Platen Size	Outer Platen Spacing	Push Stroke	Min. Truck Carriage Width	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm			A * B mm	W * L mm	C mm	S mm	mm	HCG mm	kg	ET mm
Sheet-Save Type
1600	600	PAS16E-001A	ISO 2A	1015*1000	455*1220	1020/1120	1270	920	325	660	270
1600	600	PAS16E-001B	ISO 3A	1015*1000	455*1220	1020/1120	1270	920	312	696	270
2000	600	PAS20E-001A	ISO 2A	1015*1000	455*1220	1020/1120	1270	920	329	664	270
2000	600	PAS20E-001B	ISO 3A	1015*1000	455*1220	1020/1120	1270	920	317	671	270
