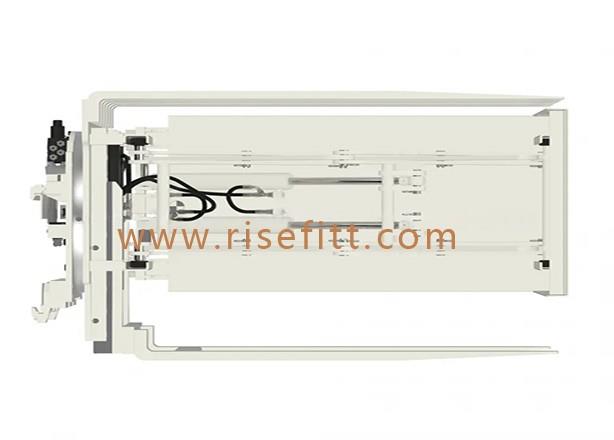

Inverta push

1. Inverta push attachment is widely used in various bale cargo and case package cargo.

2. With 4 actions: open and close, push and withdraw, side shift and rotate.

3. With standard 12V solenoid valve.

4. Side plate protects a load when rotating.

Description

Specification

Parameters

Advantages:
1. Recycling pallets rapidly.
2. Handling cargo safely and efficiently.
3. Save stacking space.
4. Improve working efficiency.

Inverta Push Attachment is suitable for all verious bale and case goods, can load and unload goods safely through clamp,rotating and push movements,recycle pallet quickly.

Parameters

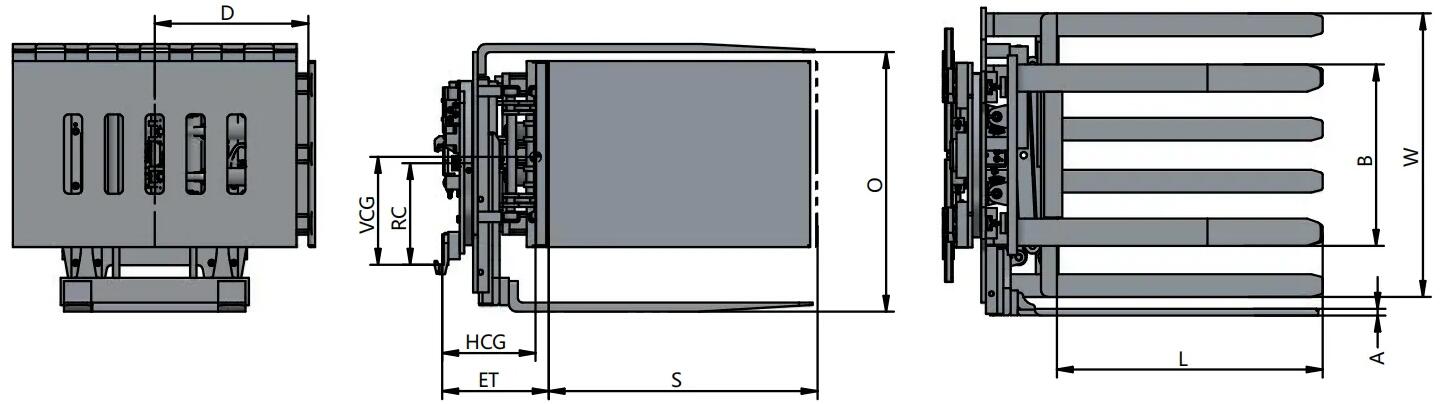

Capacity	Load Center	Model No.	Mounting Class	Opening Range	Platen Size	Push Stroke	Forks Outside Spacing	Thickness of side Stabilizer	Side Stabilizer Range	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm			O mm	W * L mm	S mm	B mm	A mm	D mm	HCG mm	kg	ET mm
1500	600	RPS15D-022B	ISO 3A	1000-1700	1100*1150	1200	560	30	580-680	419	1189	475
1500	600	RPS15D-042B	ISO 3A	900-1500	1250*1150	1200	800	30	675-775	417	1316	470
1500	600	RPS15D-053B	ISO 3A	930-1580	1350*1270	1300	800	30	700-850	448	1380	480
2000	600	RPS20D-003B	ISO 3A	930-1580	1350*1270	1300	1030	30	700-850	448	1380	480
2000	600	RPS20D-012B	ISO 3A	900-1480	940*1170	1200	700	30	550-650	434	1219	485
2000	600	RPS20D-053B	ISO 3A	900-1580	1400*1270	1300	1020	30	700-850	360	1229	485

*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus

Advantages:
1. Recycling pallets rapidly.
2. Handling cargo safely and efficiently.
3. Save stacking space.
4. Improve working efficiency.

Inverta Push Attachment is suitable for all verious bale and case goods, can load and unload goods safely through clamp,rotating and push movements,recycle pallet quickly.

Capacity	Load Center	Model No.	Mounting Class	Opening Range	Platen Size	Push Stroke	Forks Outside Spacing	Thickness of side Stabilizer	Side Stabilizer Range	Horizontal Center of Gravity	Weight	Effective Thickness
kg	mm			O mm	W * L mm	S mm	B mm	A mm	D mm	HCG mm	kg	ET mm
1500	600	RPS15D-022B	ISO 3A	1000-1700	1100*1150	1200	560	30	580-680	419	1189	475
1500	600	RPS15D-042B	ISO 3A	900-1500	1250*1150	1200	800	30	675-775	417	1316	470
1500	600	RPS15D-053B	ISO 3A	930-1580	1350*1270	1300	800	30	700-850	448	1380	480
2000	600	RPS20D-003B	ISO 3A	930-1580	1350*1270	1300	1030	30	700-850	448	1380	480
2000	600	RPS20D-012B	ISO 3A	900-1480	940*1170	1200	700	30	550-650	434	1219	485
2000	600	RPS20D-053B	ISO 3A	900-1580	1400*1270	1300	1020	30	700-850	360	1229	485
