1．Strong and durable telescopic structure.
2．Simple and reliable structure with good vision.
3．Light weight, improving the combined carrying capacity of the forklift.
4．Smooth operation, fast hydraulic action and high handling efficiency.
Optional
1．Various fork spacing
2．Optional string rods and other special structural types to replace forks

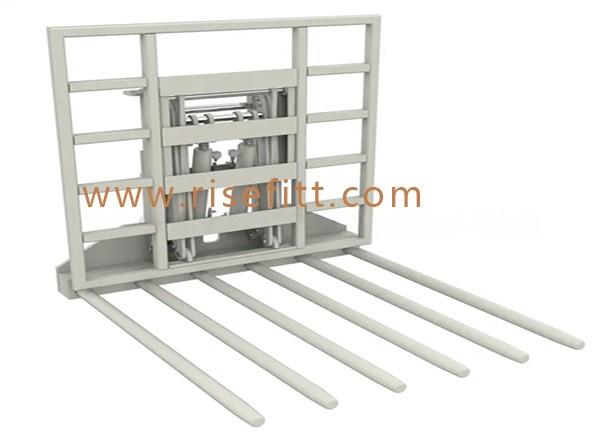

The bag load push is specially developed for the efficient and low-damage handling of bagged goods, and the structure is sturdy and durable. With the multi-slot special pallet, through fork holding, pushing out and other operations, it can realize the rapid stacking and stacking of goods, especially suitable for the handling of bag goods.

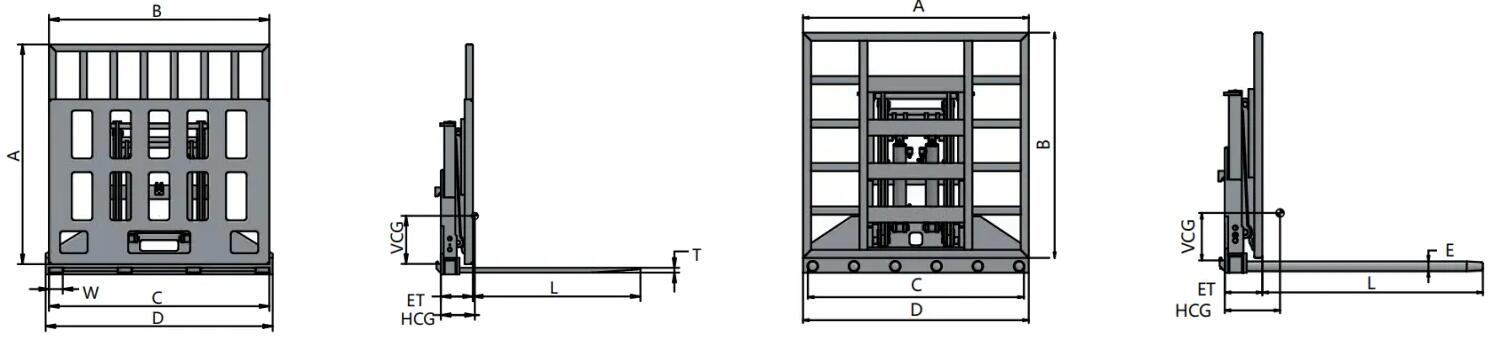

Parameters
| Capacity | Load Center |
Model No. |
Mounting Class |
Faceplate Size |
Platen Size |
Outer Platen Spacing |
Total Width | Push Stroke |
Horizontal Center of Gravity |
Weight | Effective Thickness |
| kg | mm | A * B mm |
W * L mm |
C mm |
D mm |
S mm |
HCG mm |
kg | ET mm |
||
| Fork Type | |||||||||||
| 2000 | 600 | PLB20E-0634B | ISO 3A | 1600*1600 | 100*35*1220 | 1600 | 1650 | 1250 | 247 | 628 | 240 |
| Capacity | Load Center |
Model No. |
Mounting Class |
Faceplate Size |
Bar Size |
Outer Platen Spacing |
Total Width | Push Stroke |
Horizontal Center of Gravity |
Weight | Effective Thickness |
| kg | mm | A * B mm |
ΦE * L mm |
C mm |
D mm |
S mm |
HCG mm |
kg | ET mm |
||
| Bar Type | |||||||||||
| 2000 | 600 | PLB20D-0446B | ISO 3A | 1400*1400 | 60*1370 | 1340 | 1400 | 1400 | 346 | 613 | 230 |
*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
Optional
1．Various fork spacing
2．Optional string rods and other special structural types to replace forks
The bag load push is specially developed for the efficient and low-damage handling of bagged goods, and the structure is sturdy and durable. With the multi-slot special pallet, through fork holding, pushing out and other operations, it can realize the rapid stacking and stacking of goods, especially suitable for the handling of bag goods.
| Capacity | Load Center |
Model No. |
Mounting Class |
Faceplate Size |
Platen Size |
Outer Platen Spacing |
Total Width | Push Stroke |
Horizontal Center of Gravity |
Weight | Effective Thickness |
| kg | mm | A * B mm |
W * L mm |
C mm |
D mm |
S mm |
HCG mm |
kg | ET mm |
||
| Fork Type | |||||||||||
| 2000 | 600 | PLB20E-0634B | ISO 3A | 1600*1600 | 100*35*1220 | 1600 | 1650 | 1250 | 247 | 628 | 240 |
| Capacity | Load Center |
Model No. |
Mounting Class |
Faceplate Size |
Bar Size |
Outer Platen Spacing |
Total Width | Push Stroke |
Horizontal Center of Gravity |
Weight | Effective Thickness |
| kg | mm | A * B mm |
ΦE * L mm |
C mm |
D mm |
S mm |
HCG mm |
kg | ET mm |
||
| Bar Type | |||||||||||
| 2000 | 600 | PLB20D-0446B | ISO 3A | 1400*1400 | 60*1370 | 1340 | 1400 | 1400 | 346 | 613 | 230 |
*With the innovation of technology, the configuration and parameters of our products are subject to change without notice; if in doubt, the specific sales confirmation of our company is the main focus
