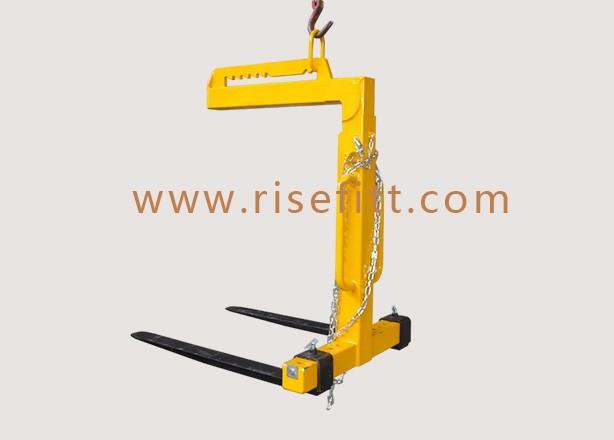

RF-CKL Series Crane Pallet Forks
The RF-CKL crane pallet lifter crane lifting attachment features a manual weight balancer, adjustable height all for your convenience and ease of use.
Description
Specification
Parameters
The RF-CKL crane pallet lifter crane lifting attachment features a manual weight balancer, adjustable height all for your convenience and ease of use.
These pallet lifters are perfectly equipped with adjustable tines and height adjustability. Both models balancing systems engage when their shackle are manually hooked into the appropriate notch.
| Model | WLL(kg) | Adjustable Fork Width(mm) | Hook Height(mm) | Effective Height(mm) | Fork Size(mm) | Overall Size(mm) | Weight(kg) |
| RF-CKL10 | 1000kg | 350-900 | 1390-1890 | 1100-1600 | 100x30x1000 | 1120x920x1390 | 130 |
| RF-CKL20 | 2000kg | 400-900 | 1640-2340 | 1300-2000 | 120x40x1000 | 1140x920x1640 | 200 |
| RF-CKL30 | 3000kg | 450-900 | 1670-2370 | 1300-2000 | 120x50x1000 | 1140x920x1670 | 250 |
| RF-CKL50 | 5000kg | 530-1000 | 1700-2400 | 1300-2000 | 150x60x1000 | 1160x1020x1700 | 370 |
