RF-F-Series Side Shifter

Sideshifter is the most common attachment installed in forklift, greatly improves the flexibility and moving efficiency of the forklift.

Description
Specification
Parameters

Sideshifter is the most common attachment installed in forklift, greatly improves the flexibility and moving efficiency of the forklift. It is suitable for various occasions using forklift for handling and stacking.


Features

● Integrate cylinder and sideshifter frame into a component, saving room and widening the view,

● Easily installed, directly connected to fork carriage

● The lower bearings used wear-resistant nylon-material to ensure smoothly move.

● High efficiency, easy maintenance and operation

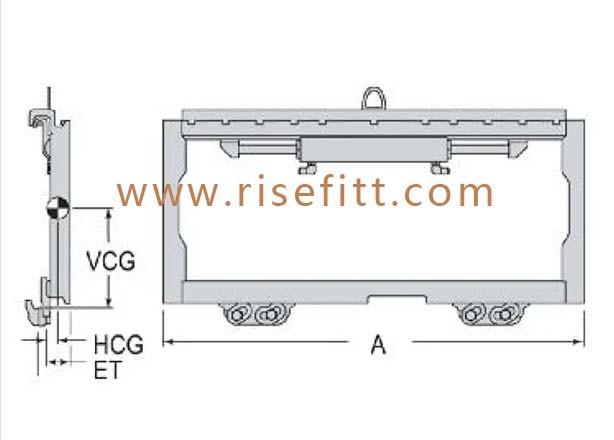

Model Capacity@
Load Center
Mounting
Class
Carriage
Width
Minimum Truck Carriage Width VCG ET HCG Weight

kg@mm
mm mm mm mm mm kg
RF-SSS-25F-01B-940 2500/500 II 940 895 234 59 27 51
RF-SSS-25F-01B-1020 2500/500 II 1020 895 233 59 27 54
RF-SSS-25F-01B-1040 2500/500 II 1040 895 232 59 27 56
RF-SSS-35F-01C-1100 3500/500 Ⅲ 1100 935 300 64 35 72
RF-SSS-35F-01C-1250 3500/500 Ⅲ 1245 1065 380 64 35 82
RF-SSS-35F-01C-1300 3500/500 Ⅲ 1300 1065 300 64 35 84


Model Capacity@
Load Center
Mounting
Class
Carriage
Width
Minimum Truck Carriage Width VCG ET HCG Weight

kg@mm
mm mm mm mm mm kg
RF-SSS-25F-01B-940 2500/500 II 940 895 234 59 27 51
RF-SSS-25F-01B-1020 2500/500 II 1020 895 233 59 27 54
RF-SSS-25F-01B-1040 2500/500 II 1040 895 232 59 27 56
RF-SSS-35F-01C-1100 3500/500 Ⅲ 1100 935 300 64 35 72
RF-SSS-35F-01C-1250 3500/500 Ⅲ 1245 1065 380 64 35 82
RF-SSS-35F-01C-1300 3500/500 Ⅲ 1300 1065 300 64 35 84
