SJL(M)2439 Spreader Beam

The SJL(M)2439 spreader beam is a unique multitasking beam which can be used by overhead crane or forklift to lift long loads.

Description
Specification
Parameters

The RF-FBBJ150 Bulk Bag Jib is designed with quick detaching hooks to quickly and efficiently lift and move bulk bags around site by forklift.

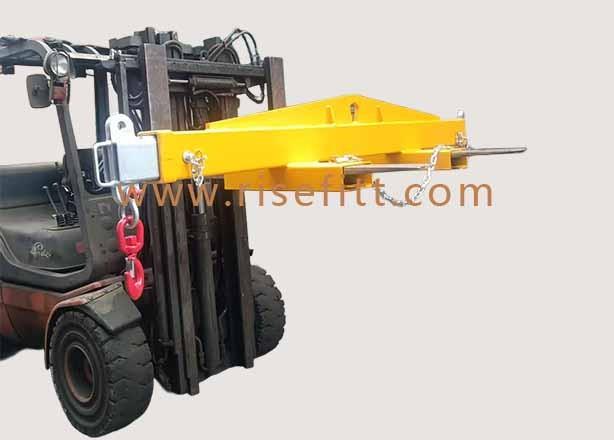

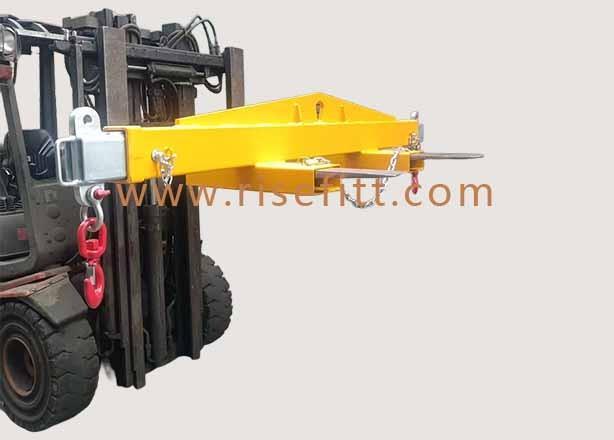

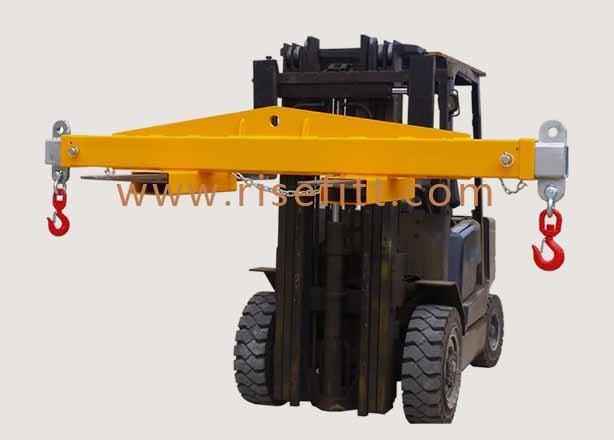

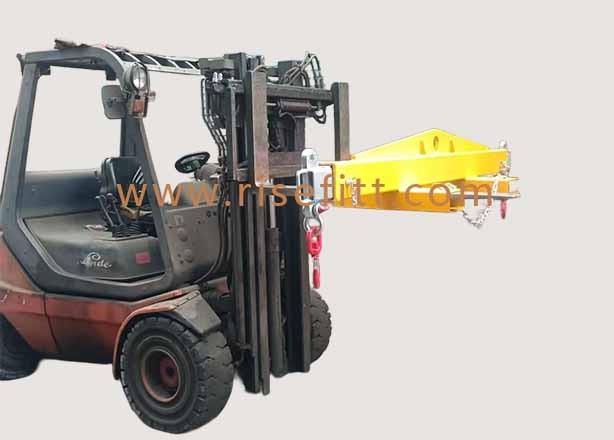

The type SJL(M)2439 Spreader Beam is a unique multitasking Beam which can be used by Crane or Forklift to lift long loads. Using a Crane, loads can be lifted via the centre single hook point (as a ‘Lifting Beam’), or end lifted using a 2 leg Chain Sling (as a ‘Spreader Beam’). If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection to the truck.

The Spreader Beam load connection points are adjustable to 3 positions by moving the extendable arms each end. Both extendable arms are locked into position via safety pins. The unit is supplied standard with a safety swivel hook each end.

The extendable arms are zinc plated with the main body painted.





Model

Rated Capacity(RC) Fork Pocket


Weight

(kg)


Use as

Full retracted

(LC@2405mm)

Middle position

(LC@3165mm)

Full extended

(LC@3925mm)

Size

(mm)

Center

(mm)



SJL2439

Forklift attachment 3500kg 1500kg 750kg




185x85




900




172

Lifting beam 4500kg 2500kg 1300kg
Spreader beam 9000kg 7200kg 5600kg



SJM2439

Forklift attachment 5600kg 2900kg 1400kg




185x85




900




260

Lifting beam 6000kg 4500kg 2400kg
Spreader beam 10000kg 10000kg 10000kg
